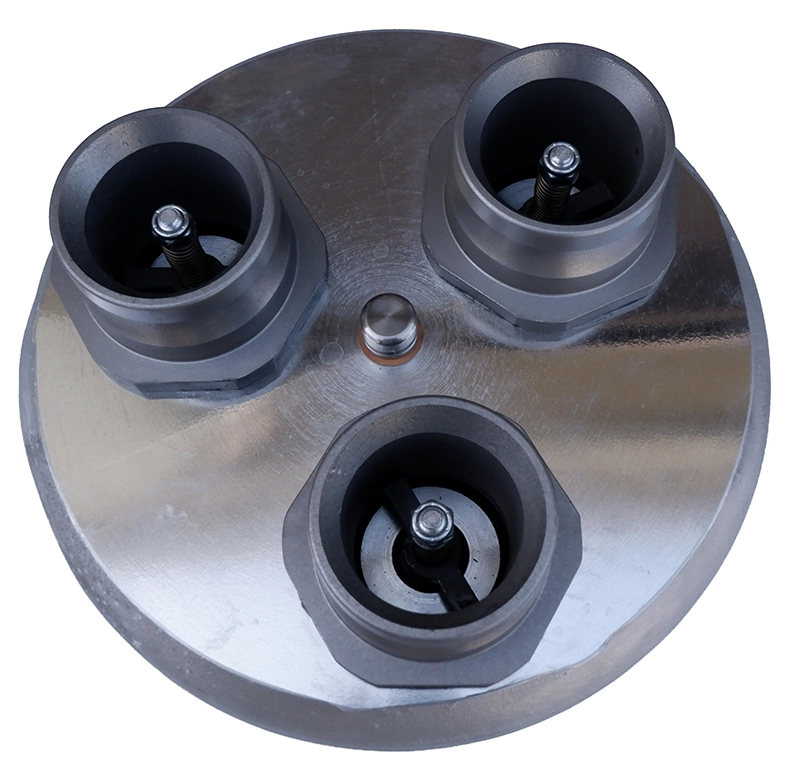

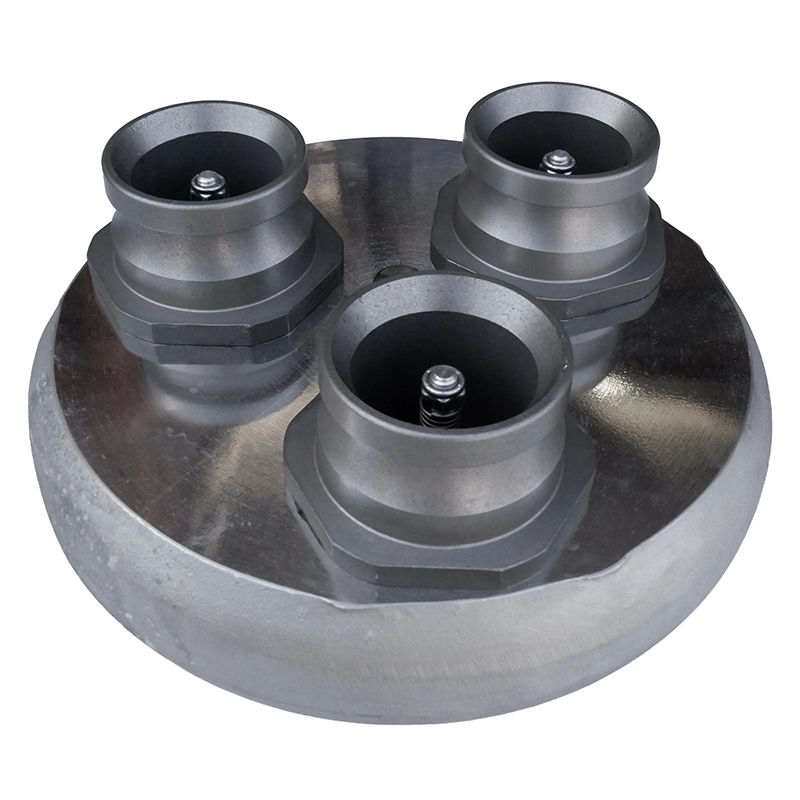

W4032 3-Way Radial Collecting Head

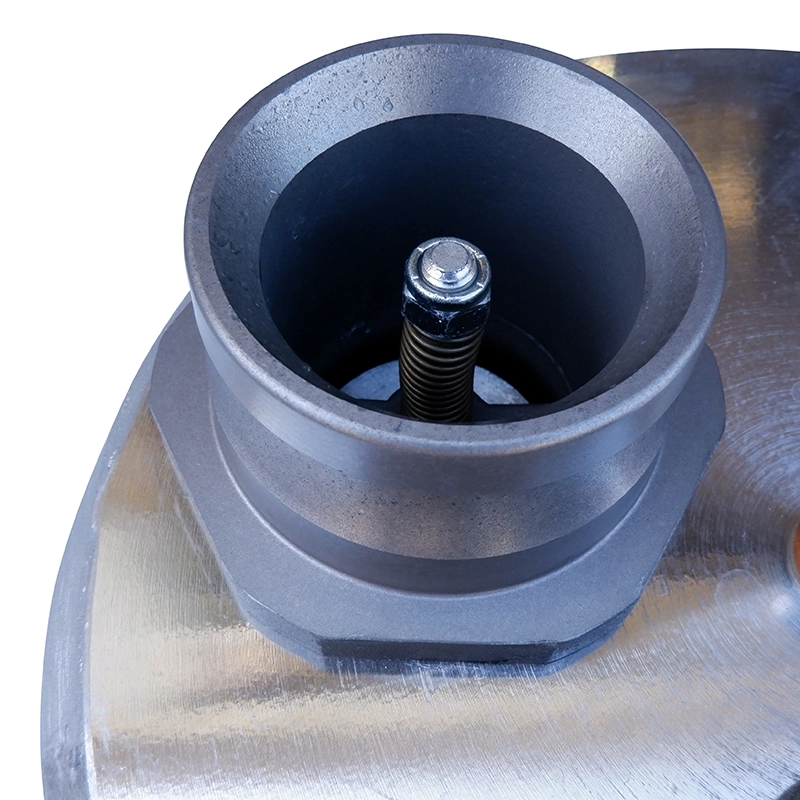

Inlets: 2½” instantaneous male to BS336:2010 c/w spring-loaded non-return valves.

Outlets: 4” BSRT female swivel to BS336:2010 – In-Line
4” BSRT female fixed to BS336:2010 – Radial
or
5½” BSRT female swivel to BS336:2010 – In-Line
5½” BSRT female fixed to BS336:2010 – Radial

Maximum w.p. 16 bar
Test Pressure 24 bar

Available in Light Alloy and Gunmetal
Manufactured in the UK to BS336:2010

Welded instantaneous n.r.v. inlets were phased out of production in late 2022 with stocks gradually
replaced by units featuring BSP threaded inst. n.r.v. connections.

The 4-bolt type inlet connections will remain available as an option.
