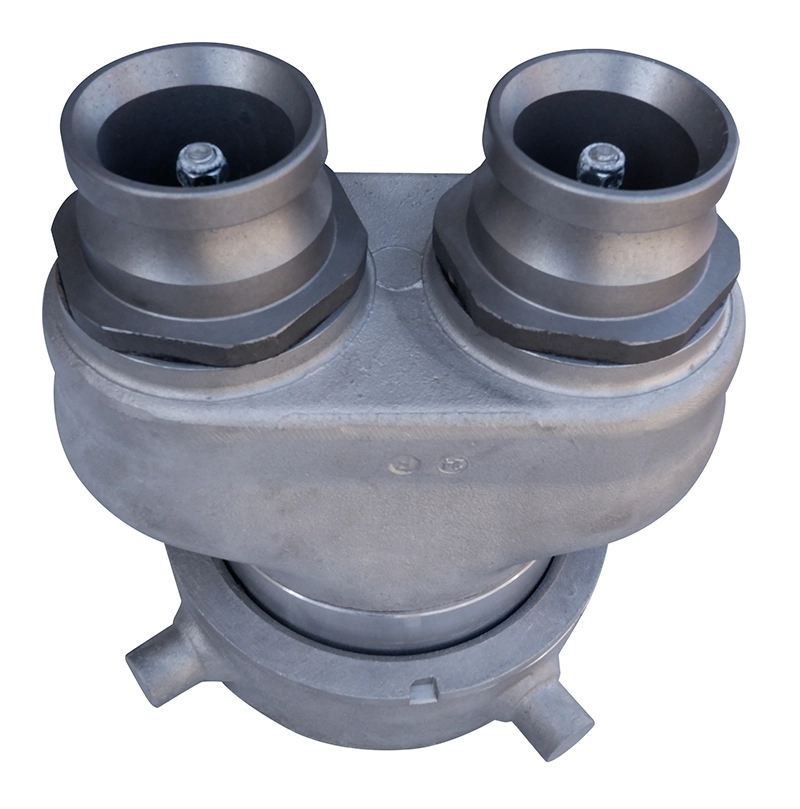

W4030 2-way Inline Collecting Head

Inlets – 2 x 65mm Male Inst (BS336) c/w Spring Loaded Non-Return Valves.
Outlets – 3″, 4″ or 5½” Female Round Thread – Swivel (BS336).

Products available in:-

LIGHT ALLOY – Natural Finish.
GUNMETAL – Natural Finish.

POLISHED and ANODIZED surface finishes are available for LIGHT ALLOY when specified.
This product is also available PAINTED to customer requirements.

Maximum Working Pressure 16 Bar.
Maximum Test Pressure 24 Bar.

Manufactured in the UK to BS336:2010

Description
Documents

Inlets: 2½” instantaneous male to BS336:2010 c/w spring-loaded non-return valves.

Outlets: 4” BSRT female swivel to BS336:2010 – In-Line
4” BSRT female fixed to BS336:2010 – Radial
or
5½” BSRT female swivel to BS336:2010 – In-Line
5½” BSRT female fixed to BS336:2010 – Radial

Maximum w.p. 16 bar
Test Pressure 24 bar

Available in Light Alloy and Gunmetal
Manufactured in the UK to BS336:2010

Welded instantaneous n.r.v. inlets were phased out
of production in late 2022 with stocks gradually
replaced by units featuring BSP threaded inst. n.r.v. connections.

The 4-bolt type inlet connections will remain
available as an option.
