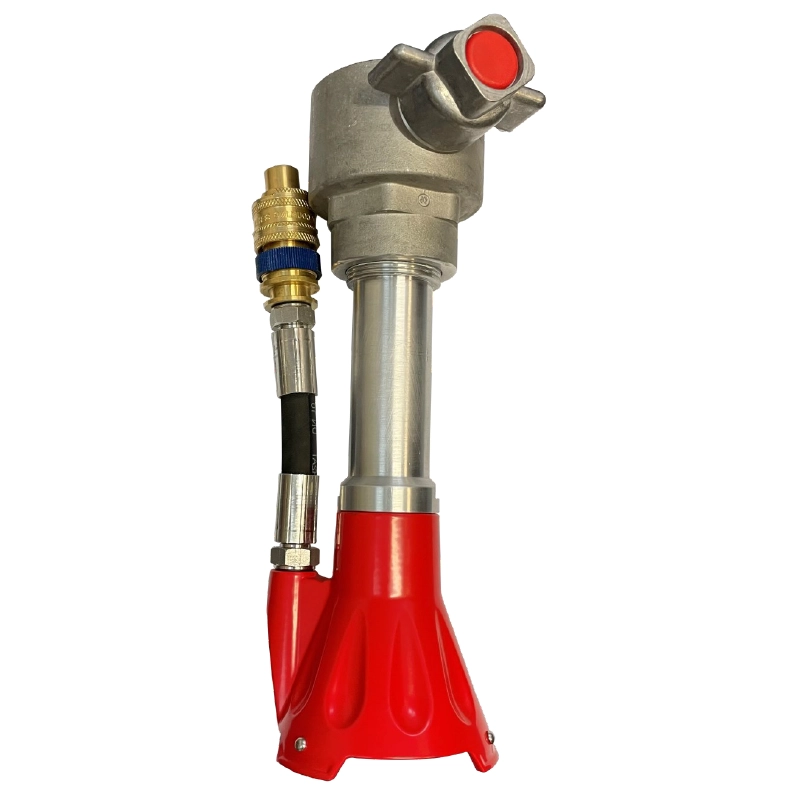

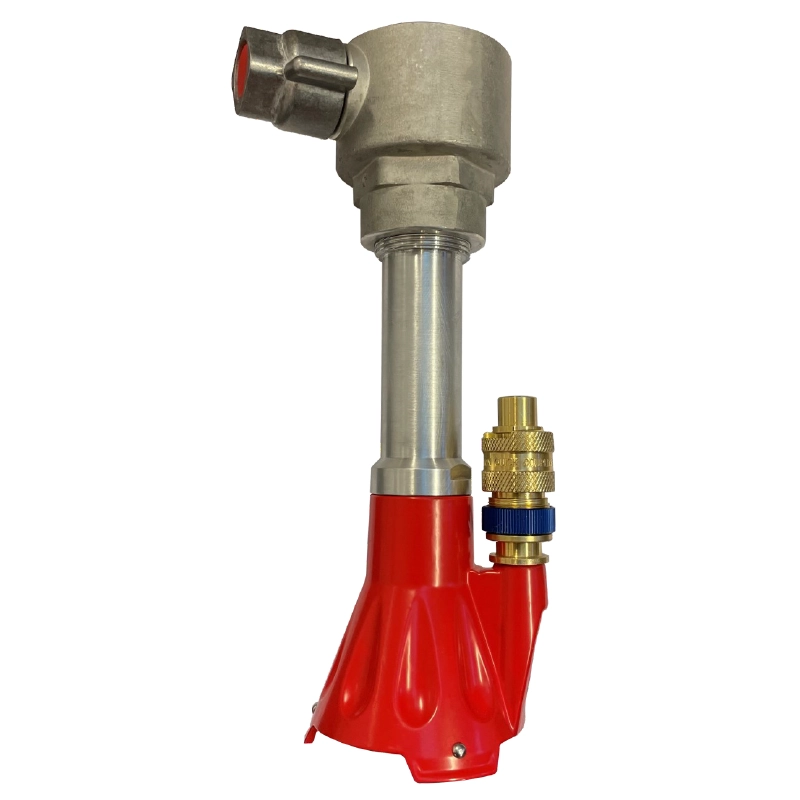

W6570 Minijector Pump

FHT Minijector Venturi Pump  Light Alloy

Small ejector pump for pumping out flooded
basements, excavations, boiler rooms etc.
without the emission of exhaust/noxious fumes.

Can remove water to a depth of approx. 25mm
and can be left to work unsupervised.

Typically 120 l.p.m. pick-up on 3m lift at 7 bar
inlet pressure with water input of 40 l.p.m.

Weight: 2.3 kg approx.
Dim: 335mm x 105mm approx.

Inlet: ⅜” BSP female or male McDonald connector
Outlet: 1½” BSPT male or 2½” (64mm)
instantaneous female (BS336:2010)

Other connection options are available including
flexible hoses with 316 stainless or plated steel fittings.

The unit requires priming at 20-25 bar*
depending on head. Once the flow is established,
a working pressure of 5-10 bar should be maintained.
The outlet hose should always be run out as
straight as possible without any kinks or
obstructions that could impede flow.

Maximum w.p. 10 bar **
Test Pressure 24 bar

*The initial priming pressure is measured at the H.P. coupling
inlet and should not result in any over-pressurisation of the
outlet coupling.
** Or max. w.p. of outlet coupling, whichever is lower.
