W6570 BSRT Ejector Pump

Large Bore Ejector Pumps

Light Alloy

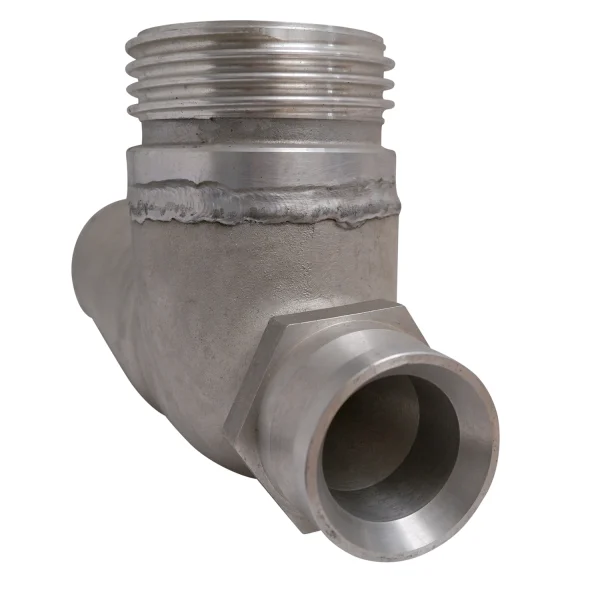

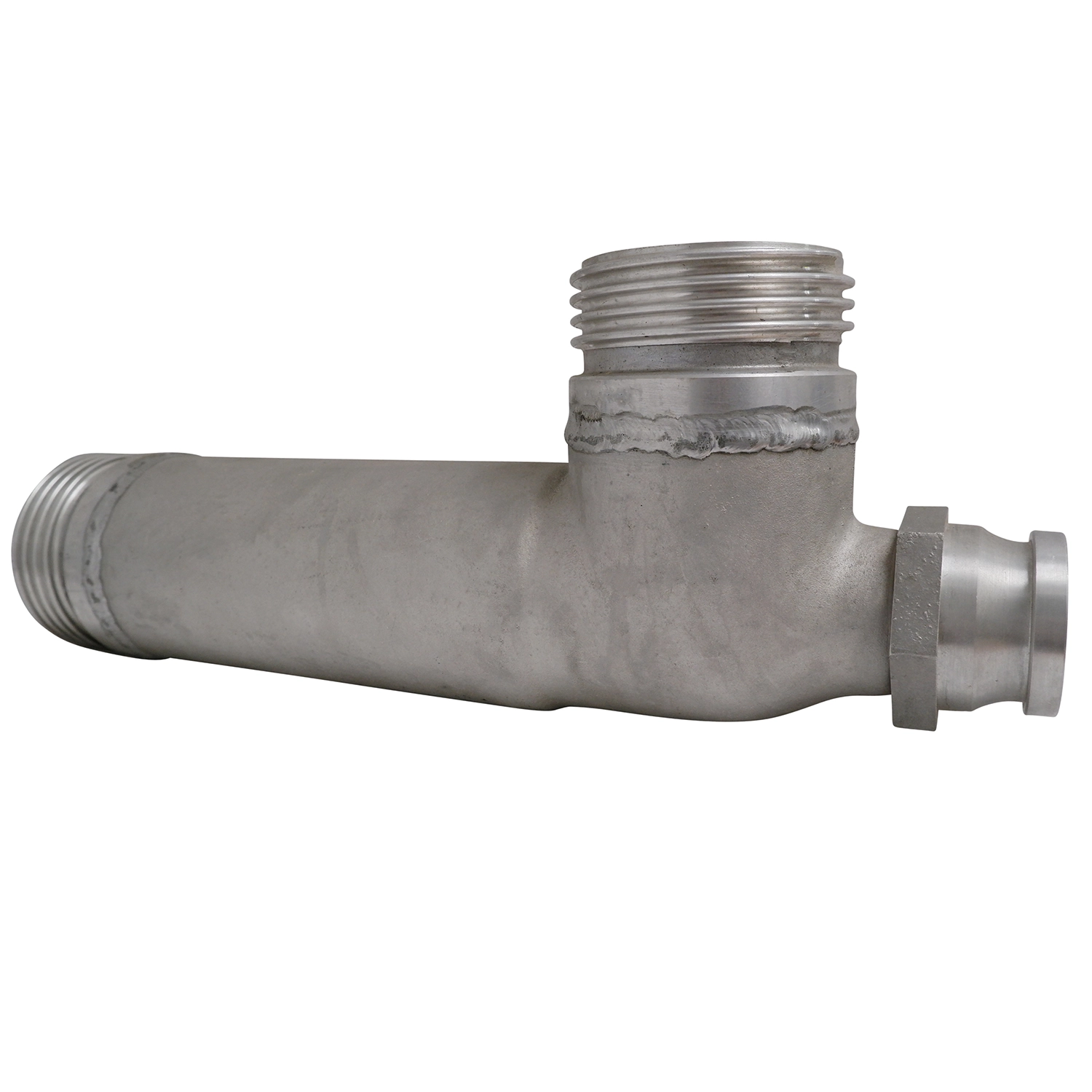

W657020 Ejector Pump
W657020-1 Spare 7/8” (22mm) nozzle

Large ejector pump for pumping out flooded basements, excavations, slurries and clinker etc. Designed to move large volumes, quickly, the unit has a H.P. inlet connection, 2½” (64mm)
instantaneous male fitted with a 7/8” jet.

Manufactured in the UK.

Dims: 525mm x 210mm x 130mm approx.
Weight: 4.7kg
H. P. Inlet: 2½” (64mm) instantaneous male to BS336:2010 with 7/8” jet outlet.
Suction Inlet: 4” BSRT male to BS336:2010
Outlet: 4” BSRT male to BS336:2010

Maximum w.p. 16 bar*
Test Pressure 24 bar
