W2560 Series Blue Devil Attack Nozzles
W25600 series
Nozzles: Constant Flow. Lightweight.
Improved Performance. Rugged
Construction
Constant Flows:
Variable from 115 l.p.m. to 950 l.p.m. across the range.
Lightweight:
All major components in hard
anodized aluminium.
Improved Performance:
The “Rylstatic” system is an
alternative to fixed or spinning teeth that delivers reduced friction loss, improved throw and reduced maintenance. Most importantly, the increased efficiency of the RYLSTATIC system results in smaller droplet size with increased cooling effect whilst maintaining the effective reach in the FOG position.
Rugged Construction:
Heavy-duty design manufactured
using hard anodized aluminium, tough rubber bumper and pistol grip with stainless steel internal springs and clips and incorporating the new RYLSTATIC system eliminating
vulnerable spinning teeth.

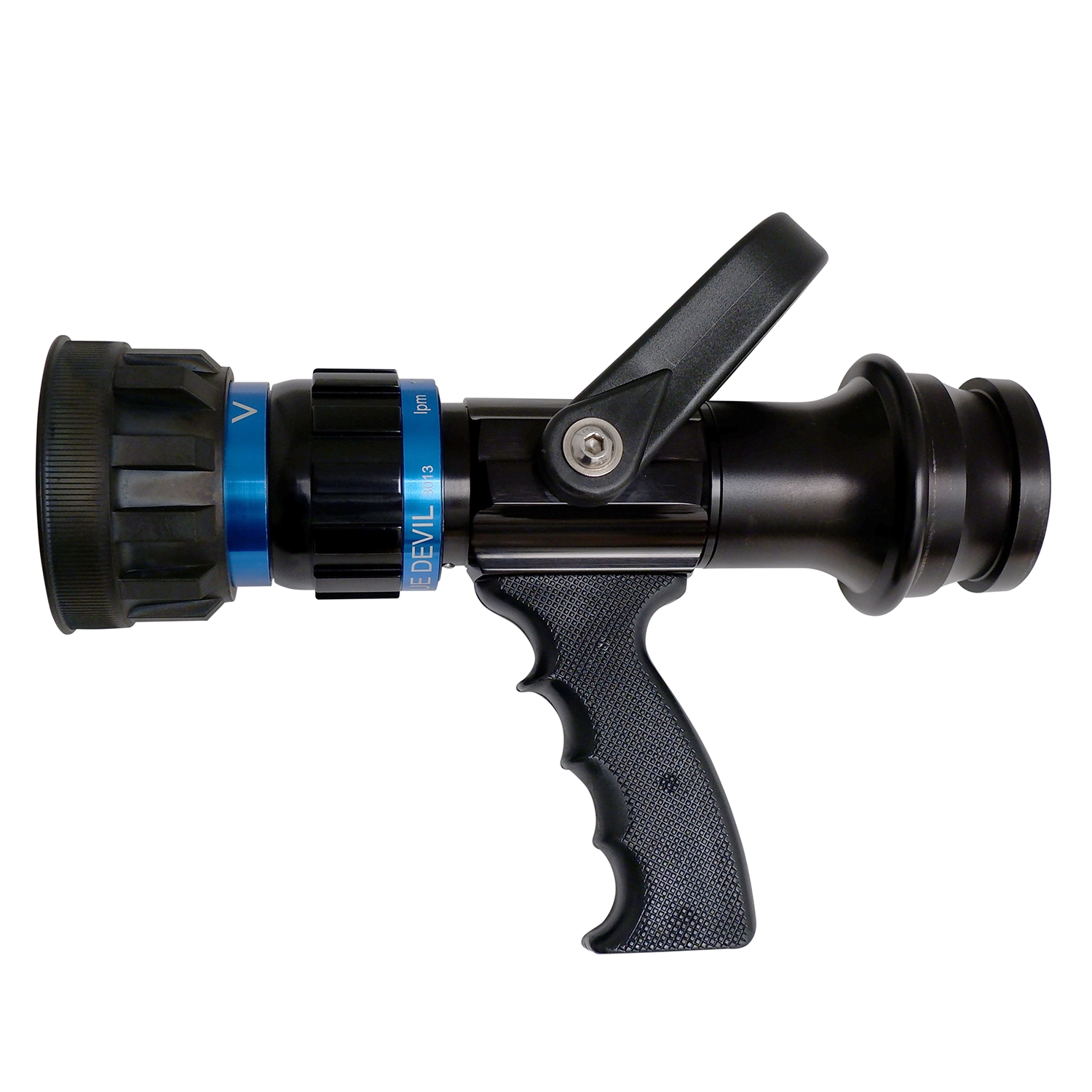

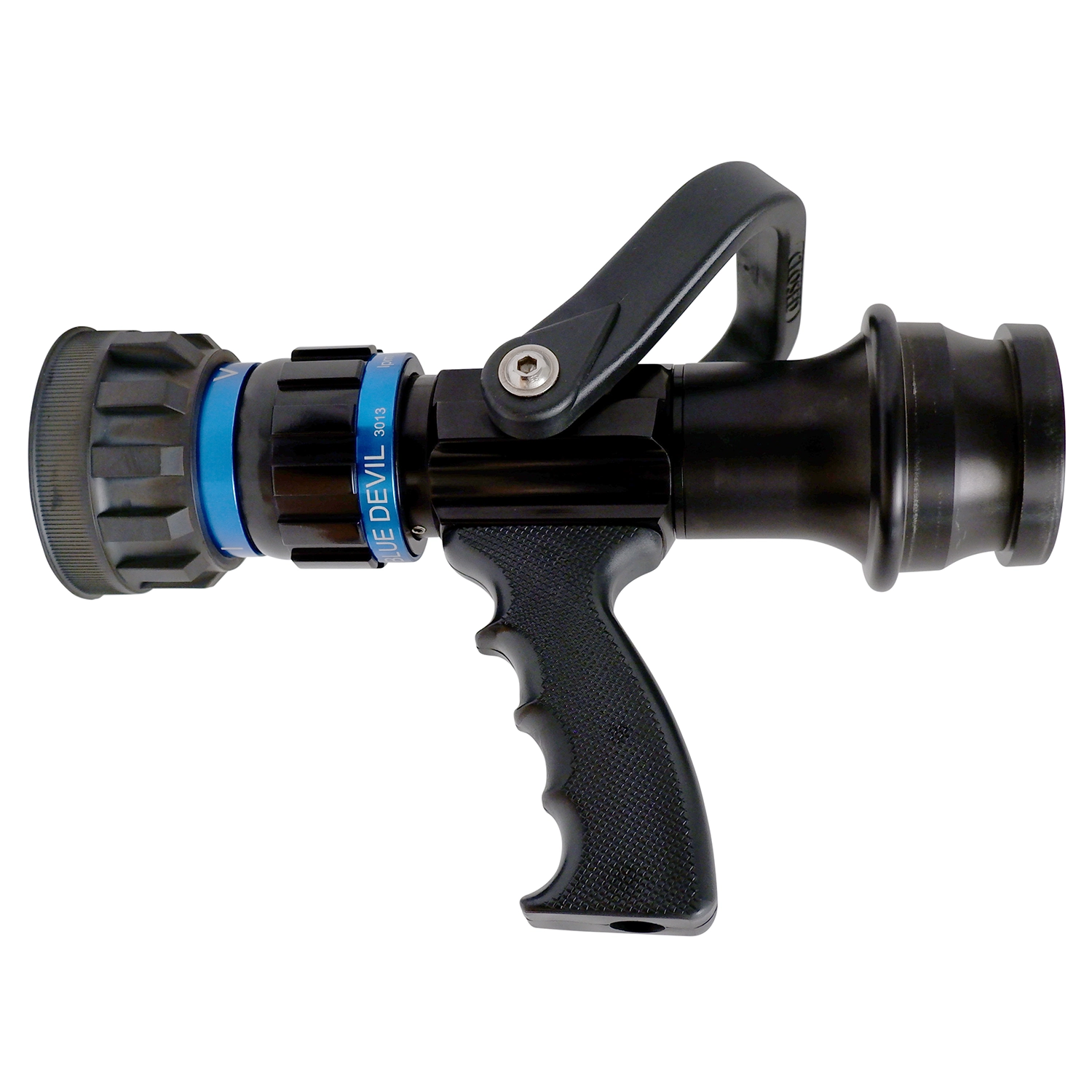

W256037

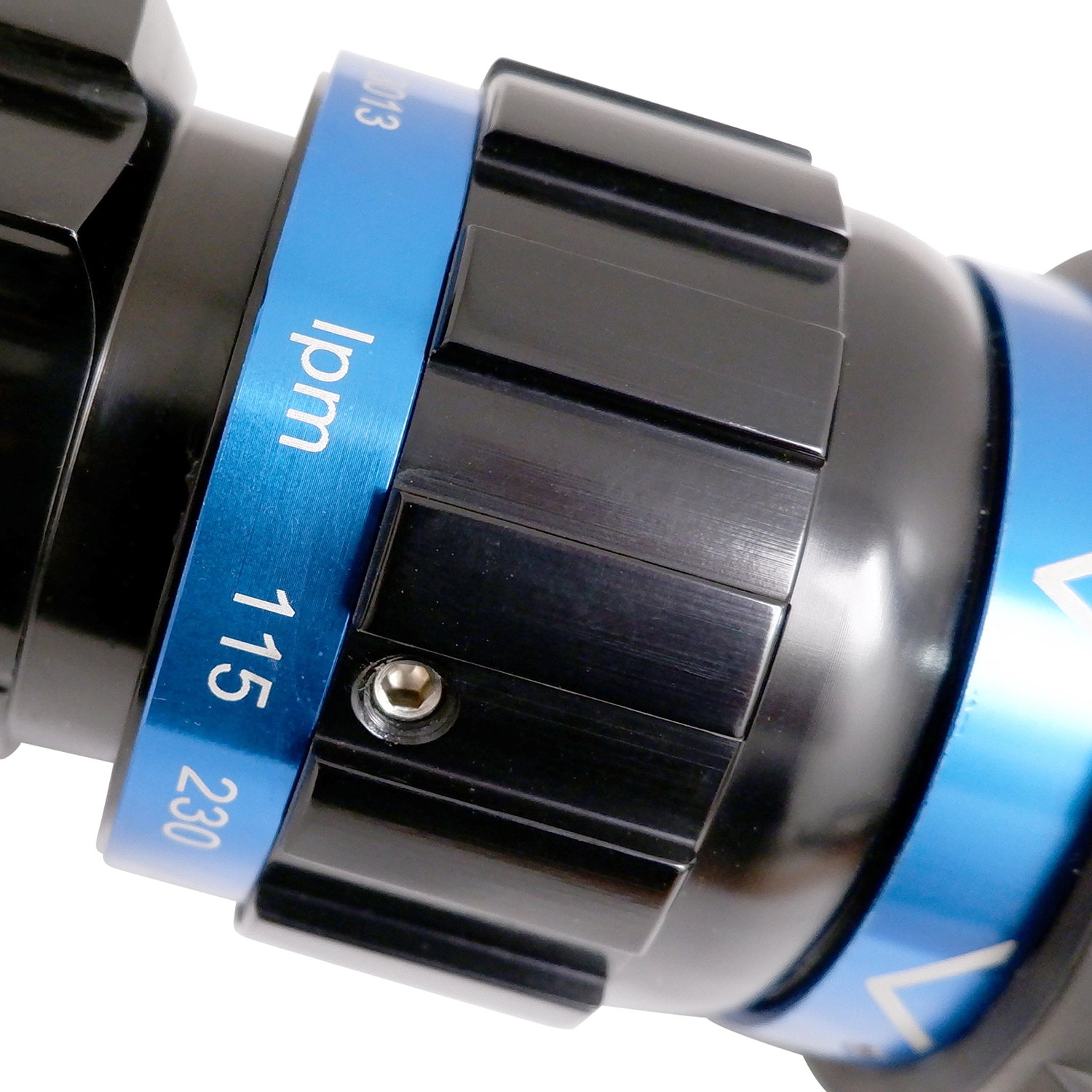

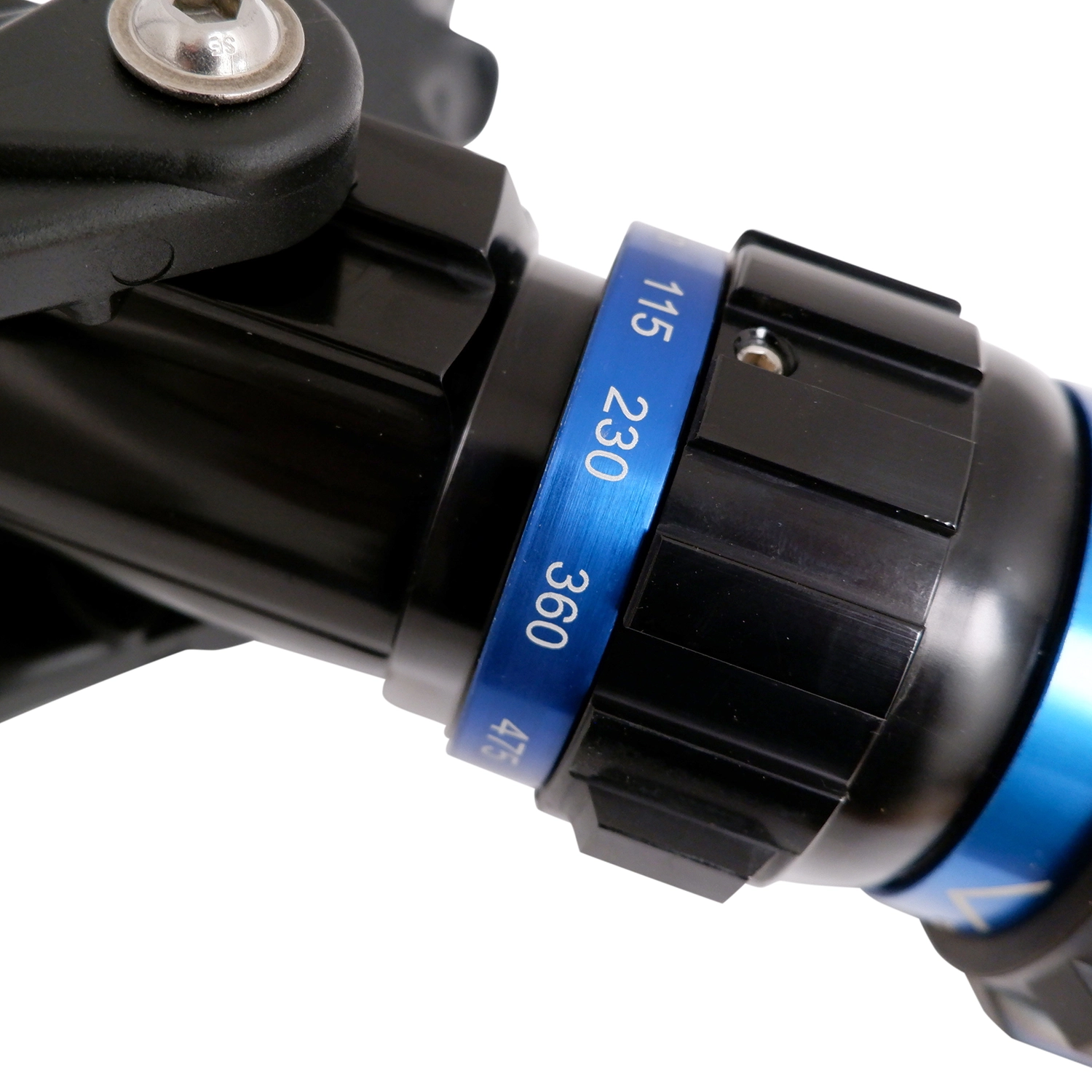

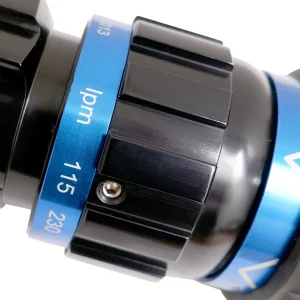

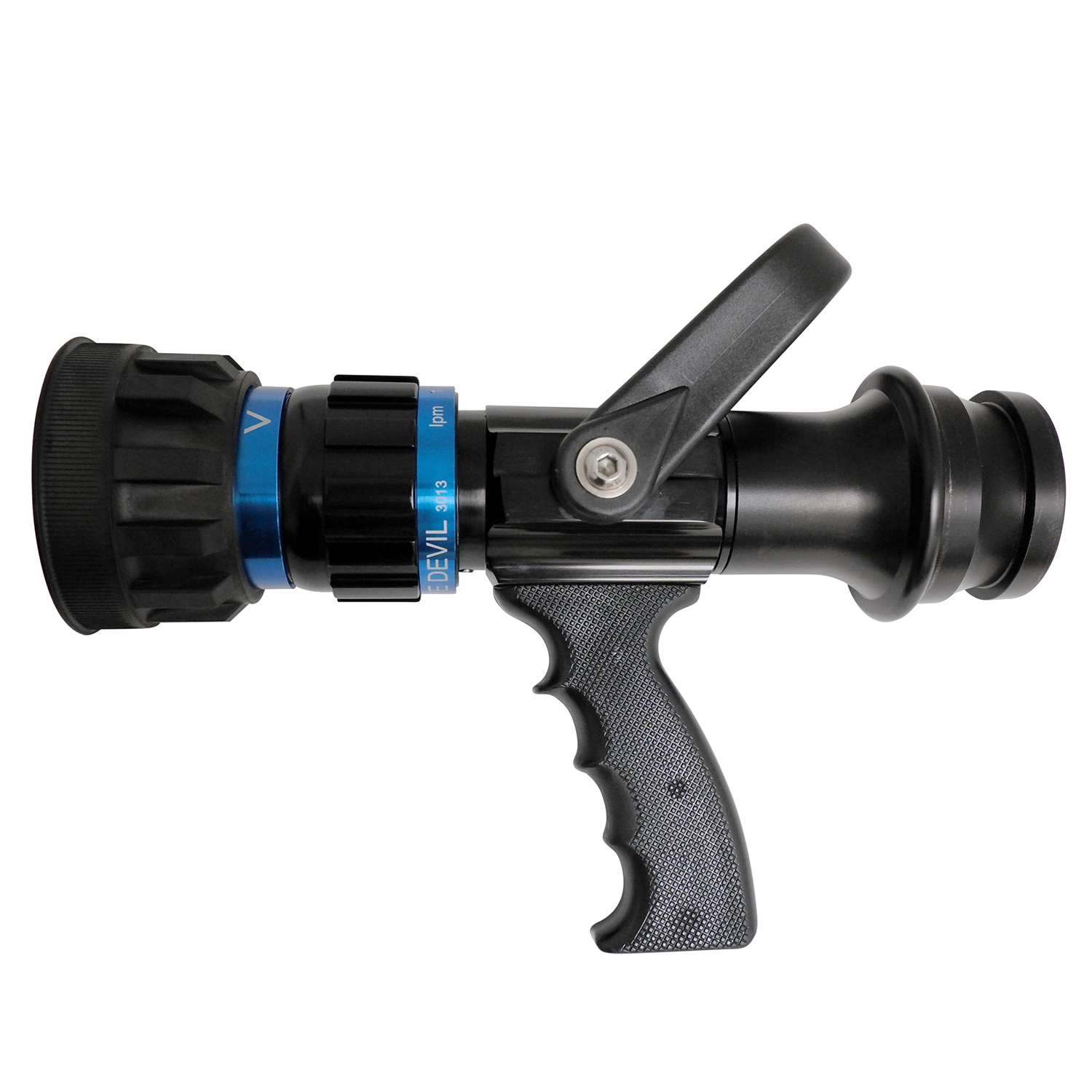

1.1/2″ Blue Devil Nozzle – Model BD 3013 – Rylstatic
Selectable flow at 115, 230, 360, 500 lpm plus flush.
Maximum W.P. 16 bar. Inlet 2.1/2″ inst. male swivel to BS336.
Hard anodized light alloy.

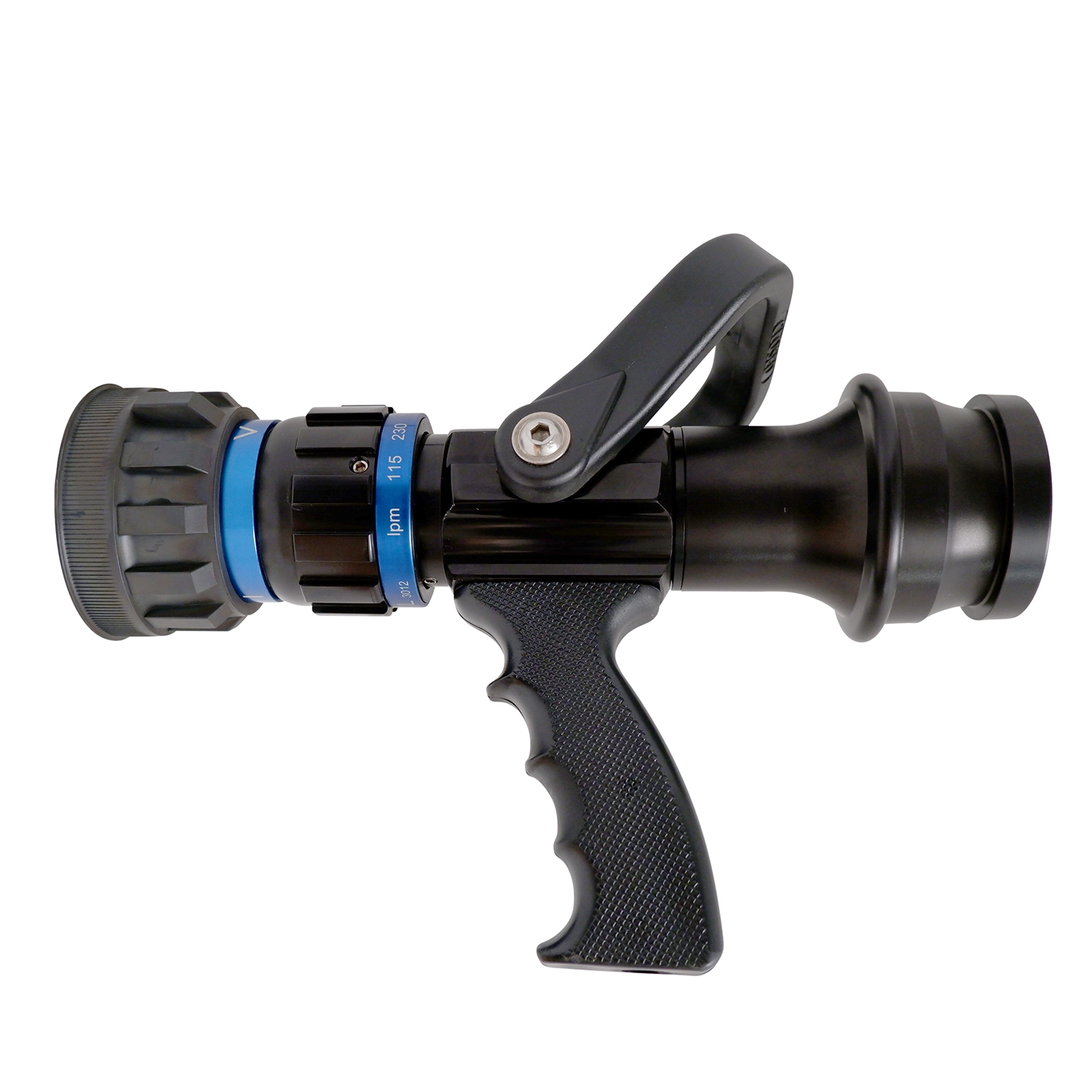

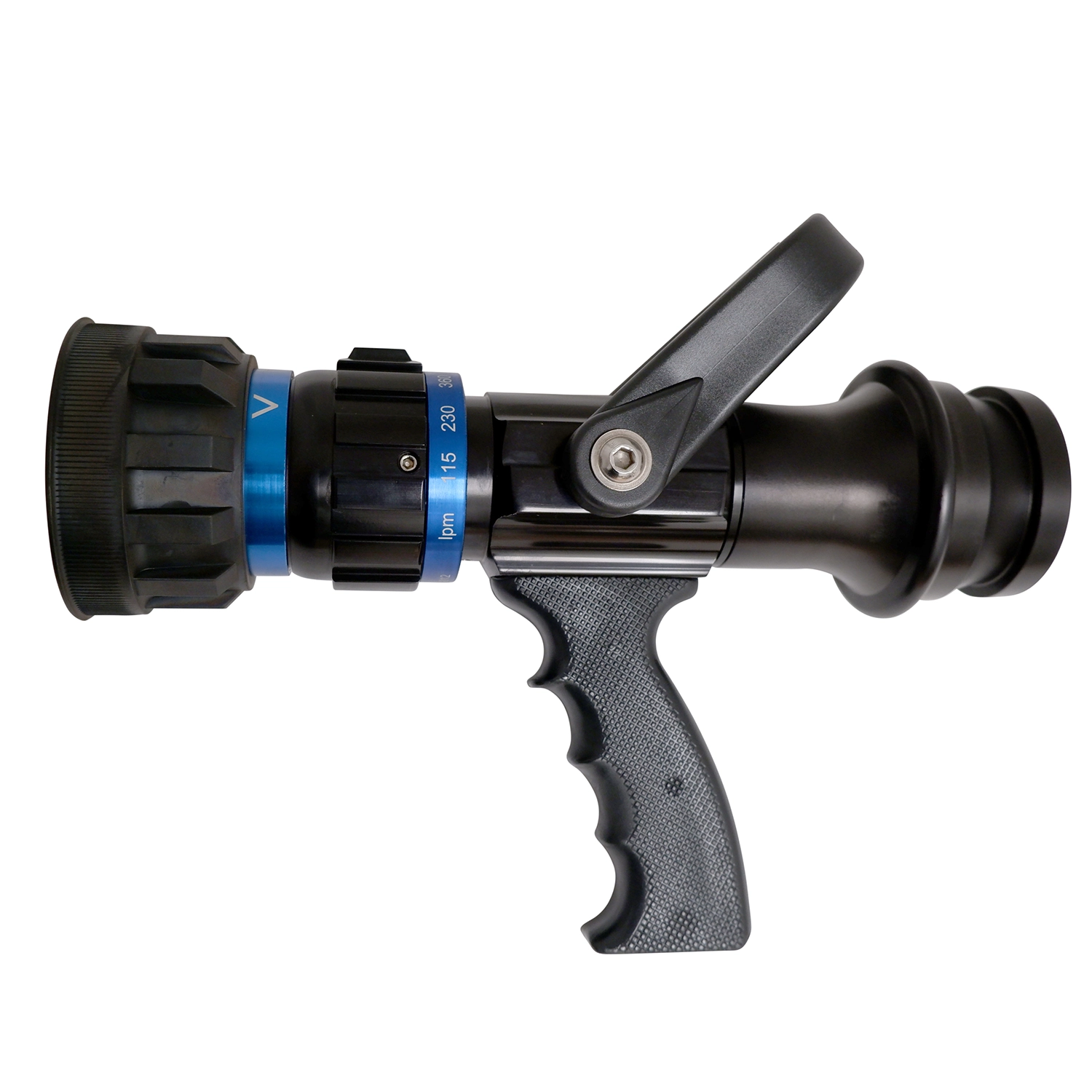

W256033
1.1/2″ Blue Devil Nozzle – Model BD 3012 – Rylstatic
Selectable flow at 115, 230, 360, 465 lpm plus flush.
Maximum W.P. 16 bar. Inlet 2.1/2″ inst male swivel to BS336.
Hard anodized light alloy.

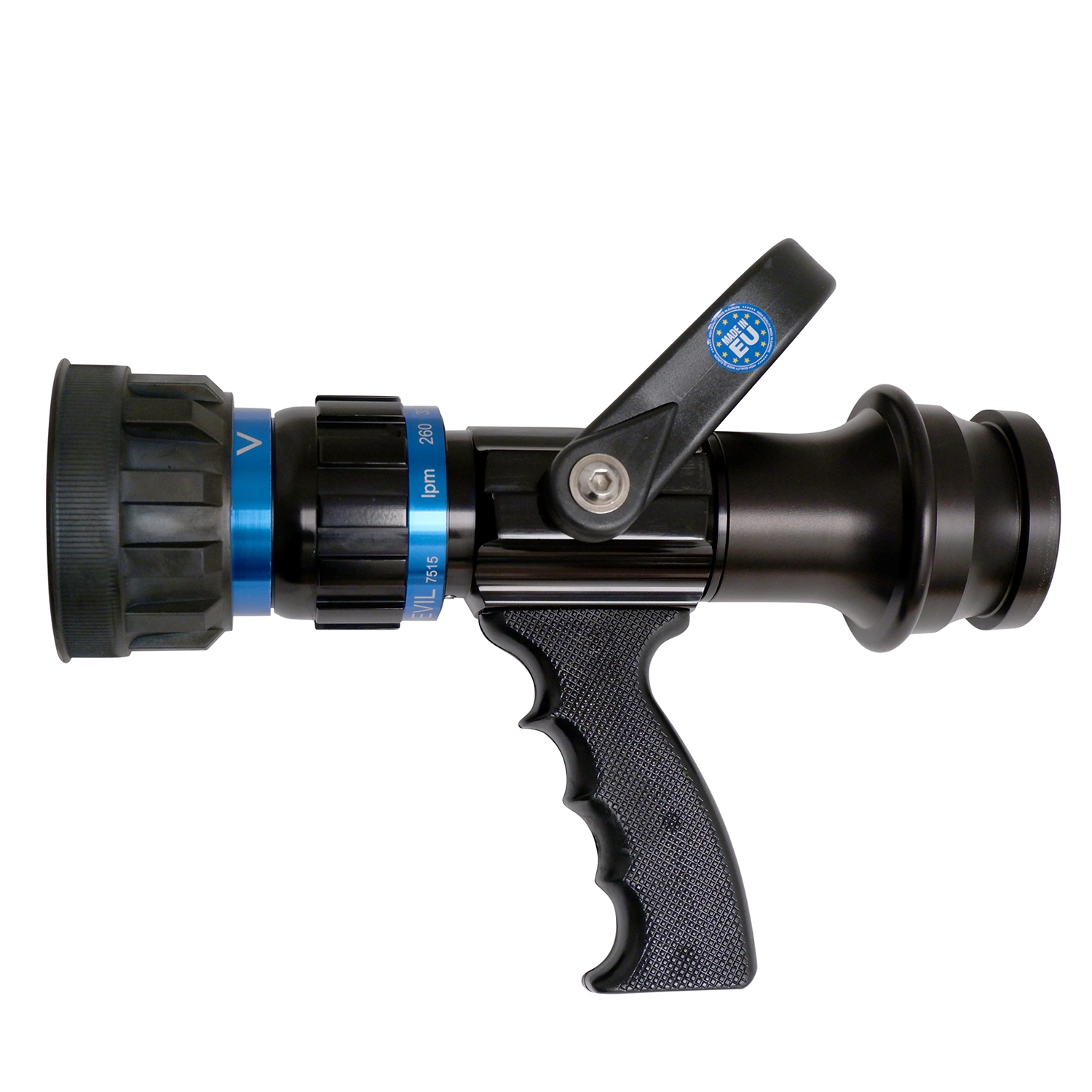

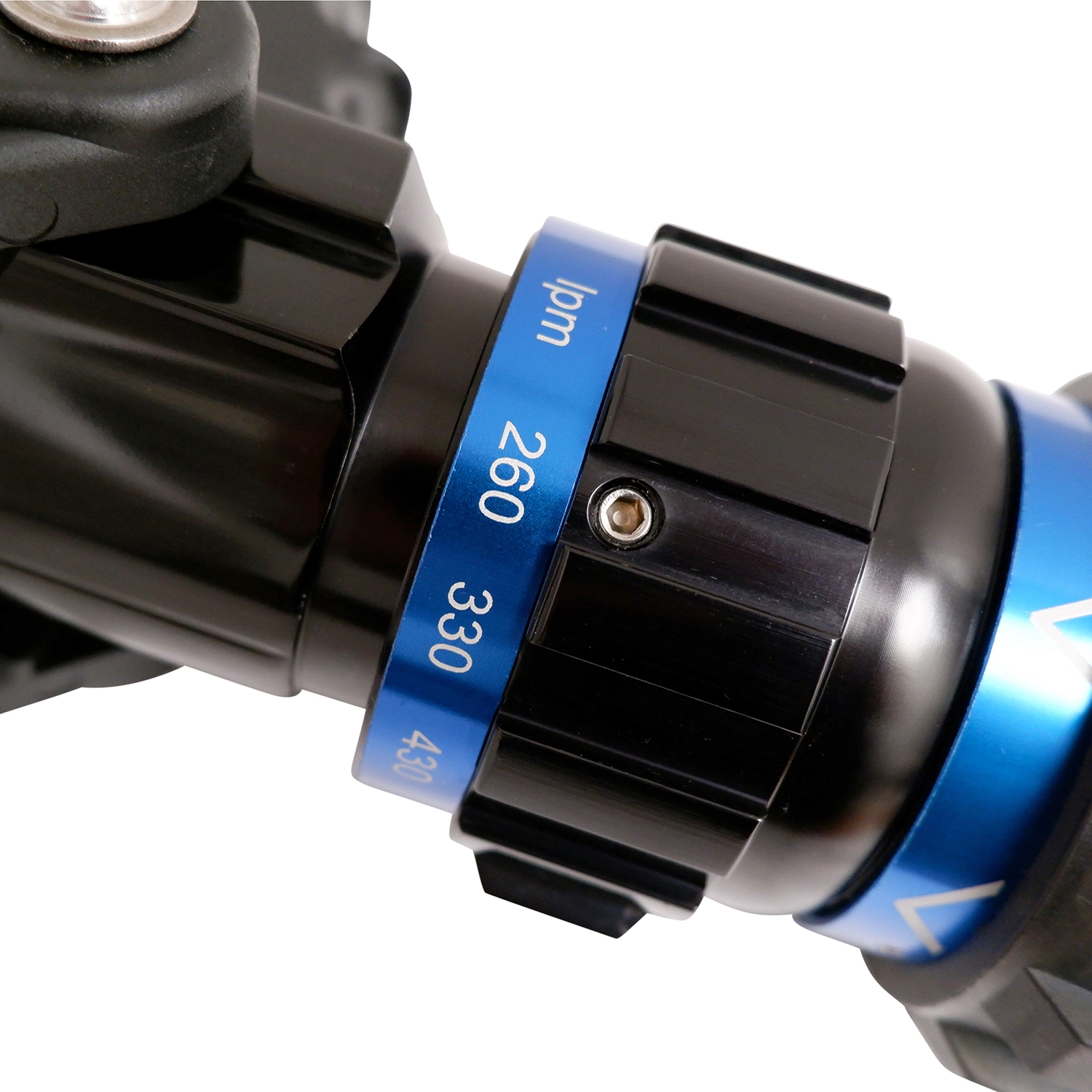

W256063

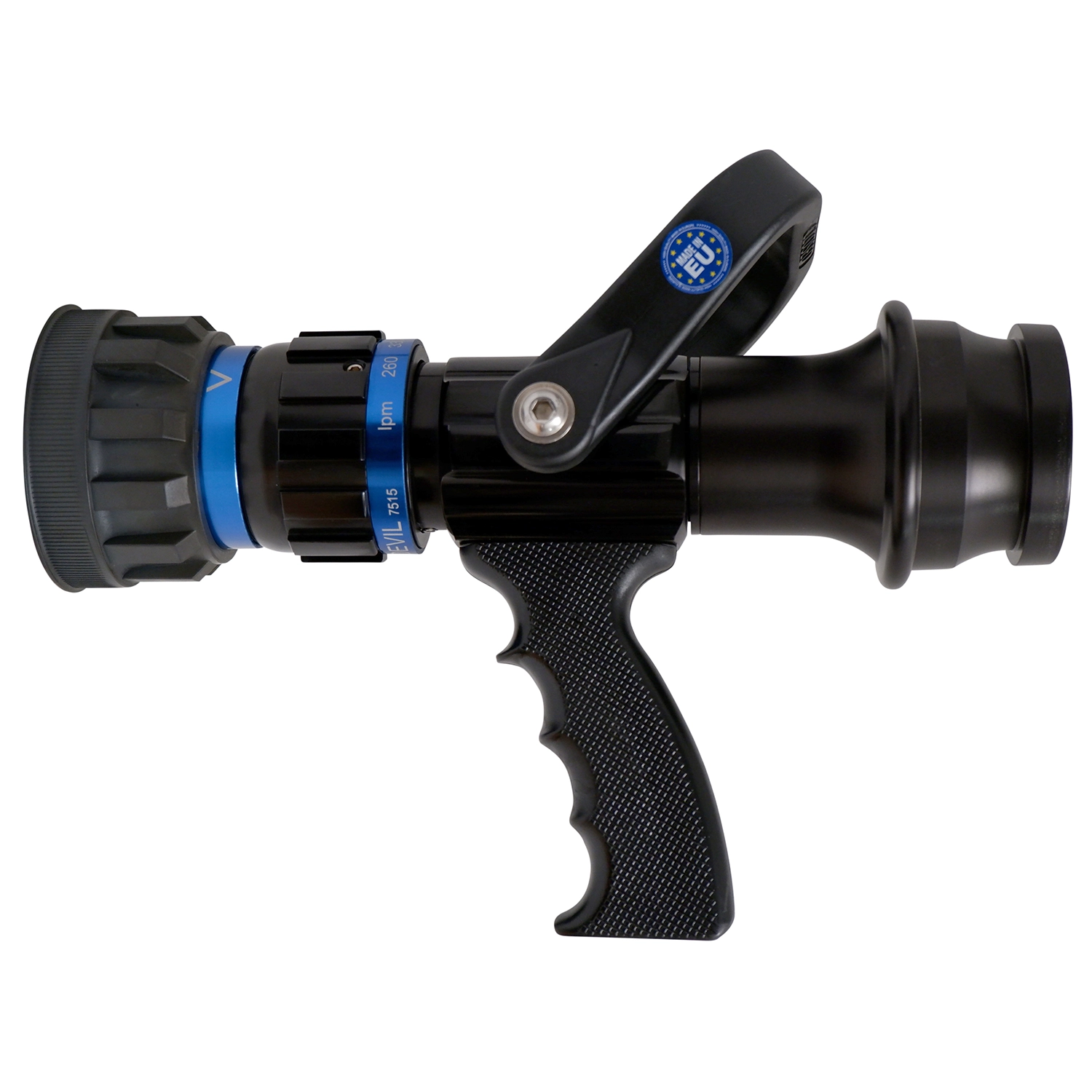

1.1/2″ Blue Devil Nozzle – Model BD 7515 – Rylstatic
Constant flow at 280, 360, 470, 560 lpm plus flush.
Maximum W.P. 16 bar. Inlet 2.1/2″ swivel, inst. Male to BS336.
Hard anodized light alloy.

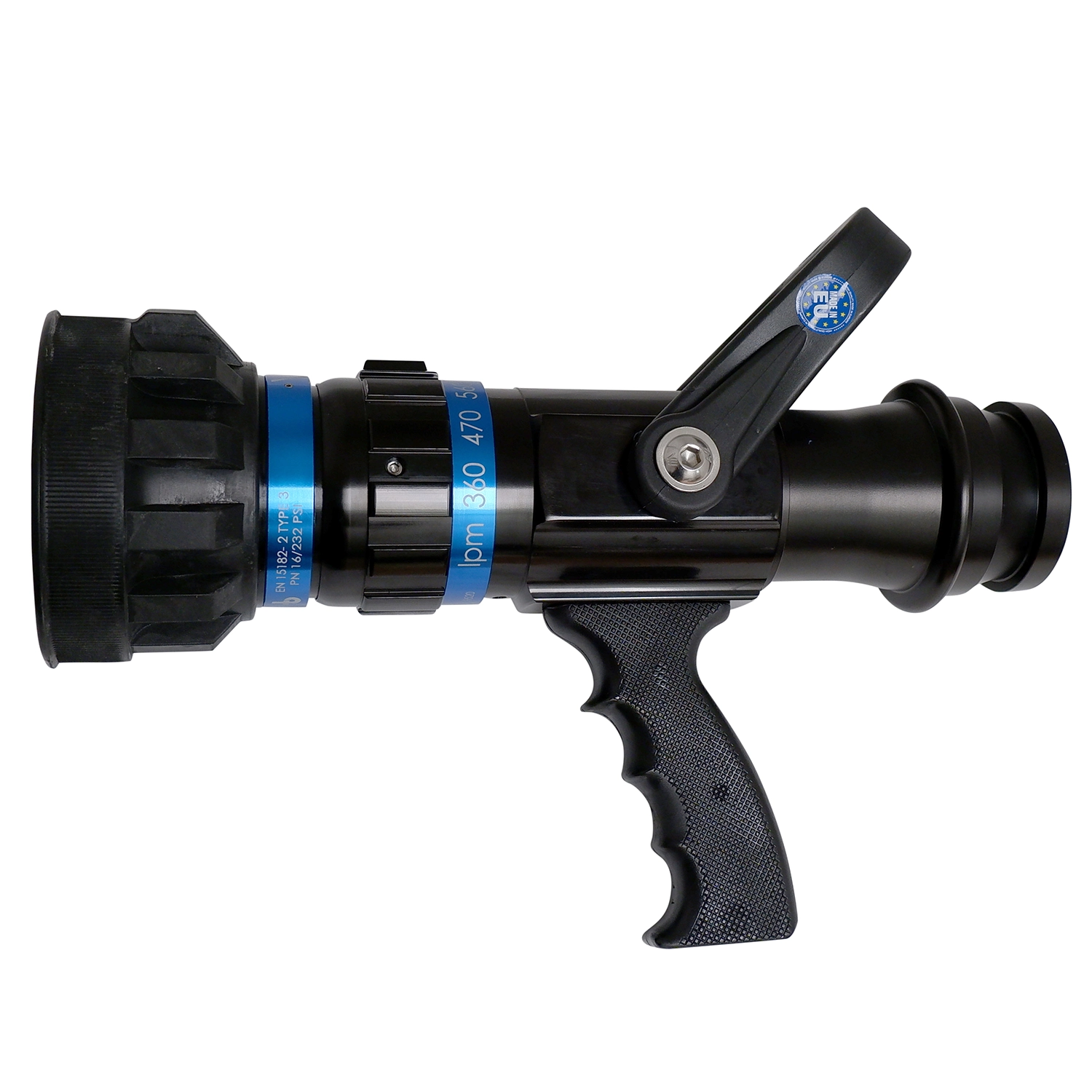

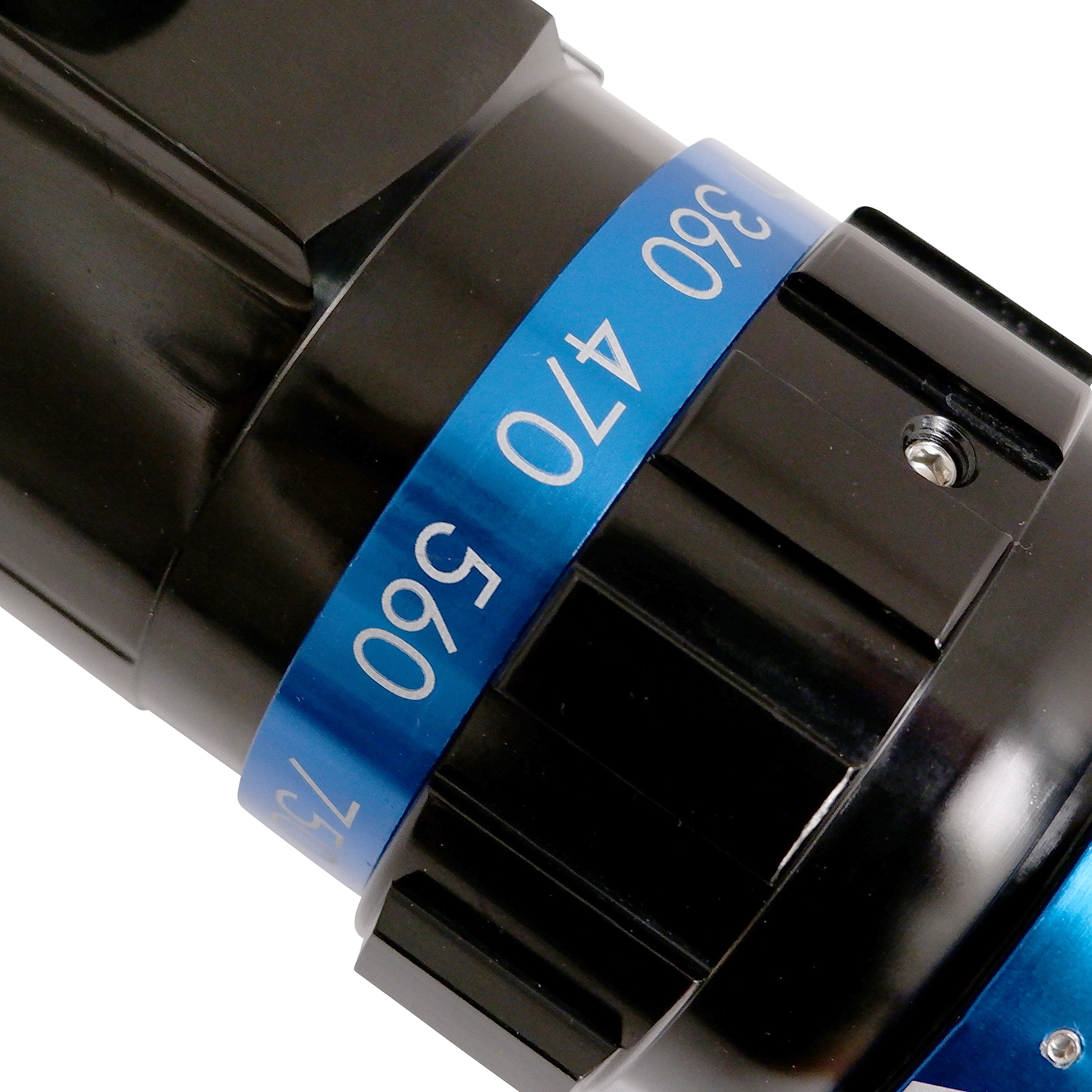

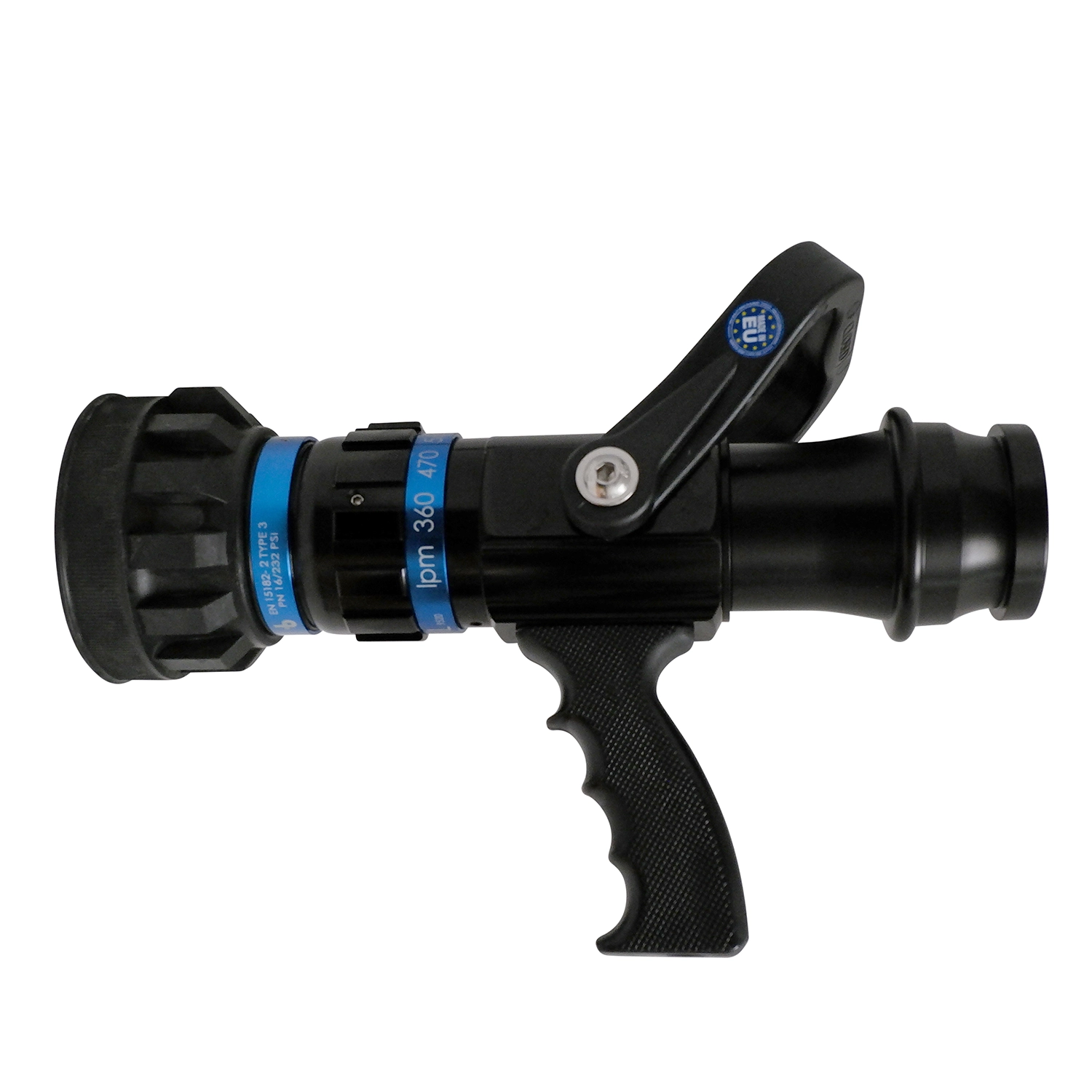

2″ Blue Devil Nozzle – Model BD 9520 – Rylstatic
Selectable flow at 360, 470, 560, 750 lpm plus flush.
Maximum W.P. 16 bar. Inlet 2.1/2″ inst integral male swivel to BS336.
Hard anodized light alloy.
| Title | Type | Size | |
|---|---|---|---|
|
FHT Blue Devil - General | application/pdf | 563 KB |
|
|
FHT Blue Devil - Performance 6 Bar | application/pdf | 399 KB |
|
|
FHT Blue Devil - Performance 7 Bar | application/pdf | 398 KB |
| Maximum w.p. | 16 bar |
|---|---|
| Leak test pressure | 25.5 bar |
