W2540 AWG Branchpipes

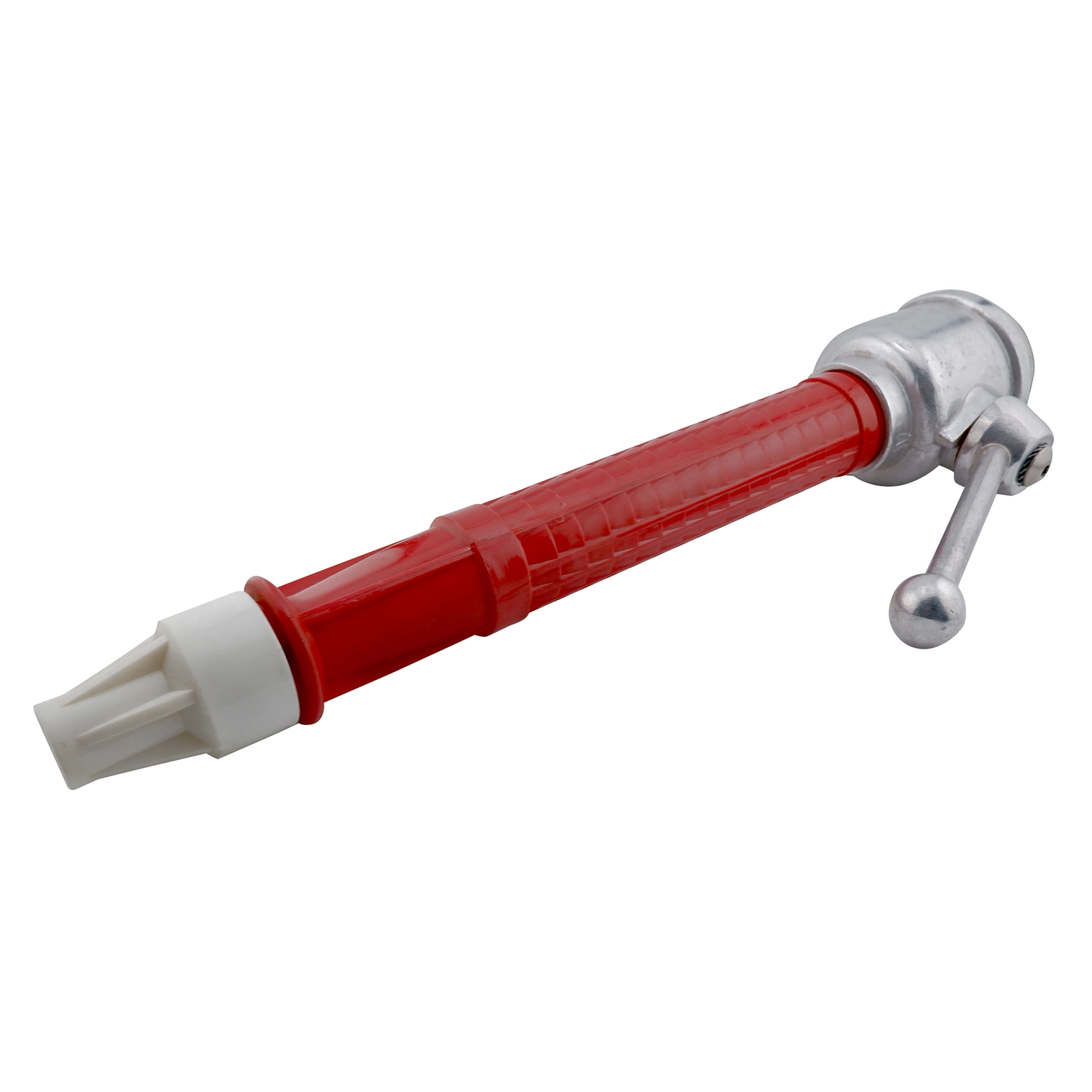

W254000A

AWG No.1 Jet/off/Spray Nozzle.

9 &12mm nozzles,130 & 230 lpm at 6 bar. Spray angle 15 – 20 deg.

Inlet 2″ BSP male – L/A. Max w.p. 16 bar

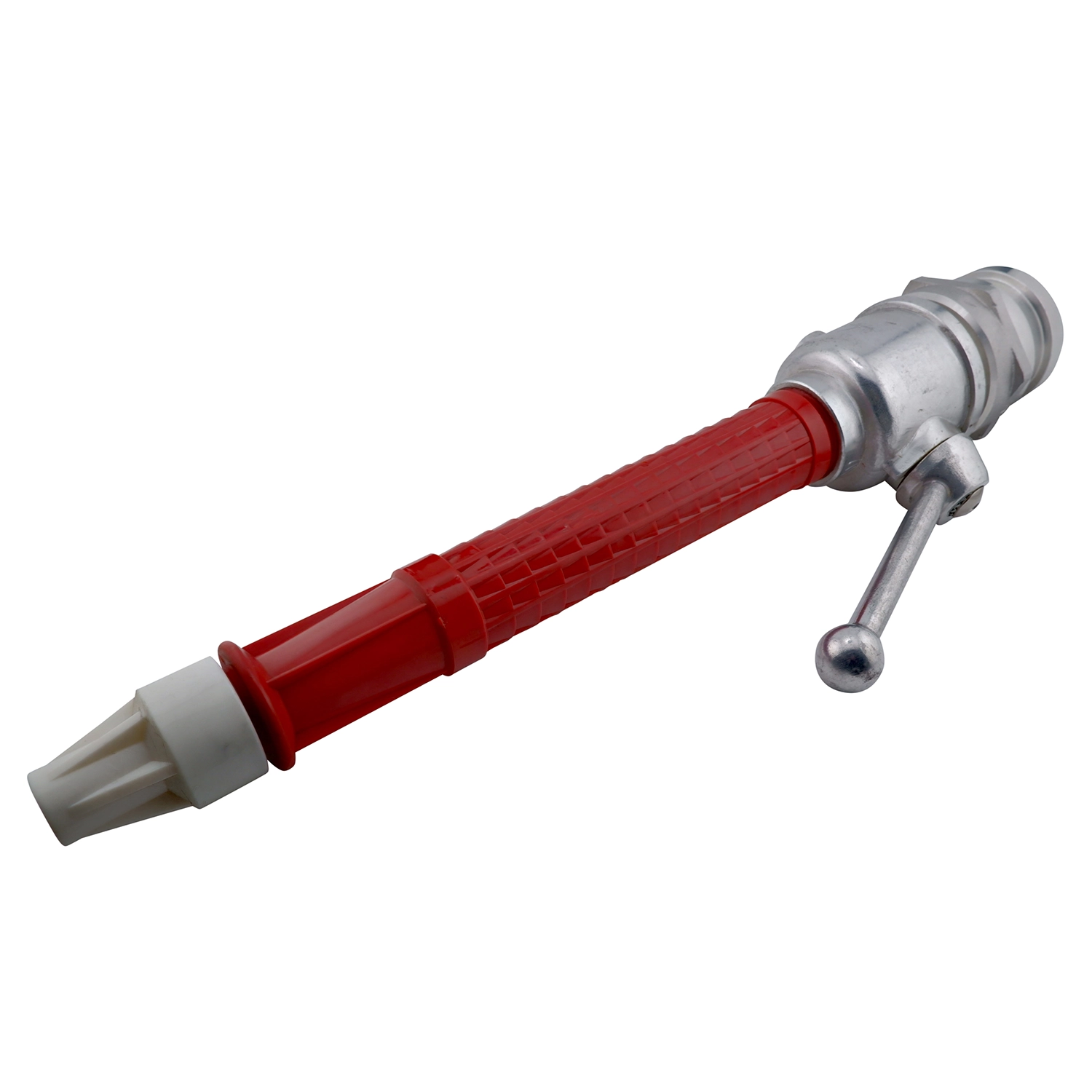

W254001A

AWG No.1 Jet/off/Spray Nozzle.

9 & 12mm nozzles,130 & 235 lpm at 6 bar. Spray angle 15 – 20 deg.

Inlet 2.1/2″ inst male – L/A. Max w.p. 16 bar

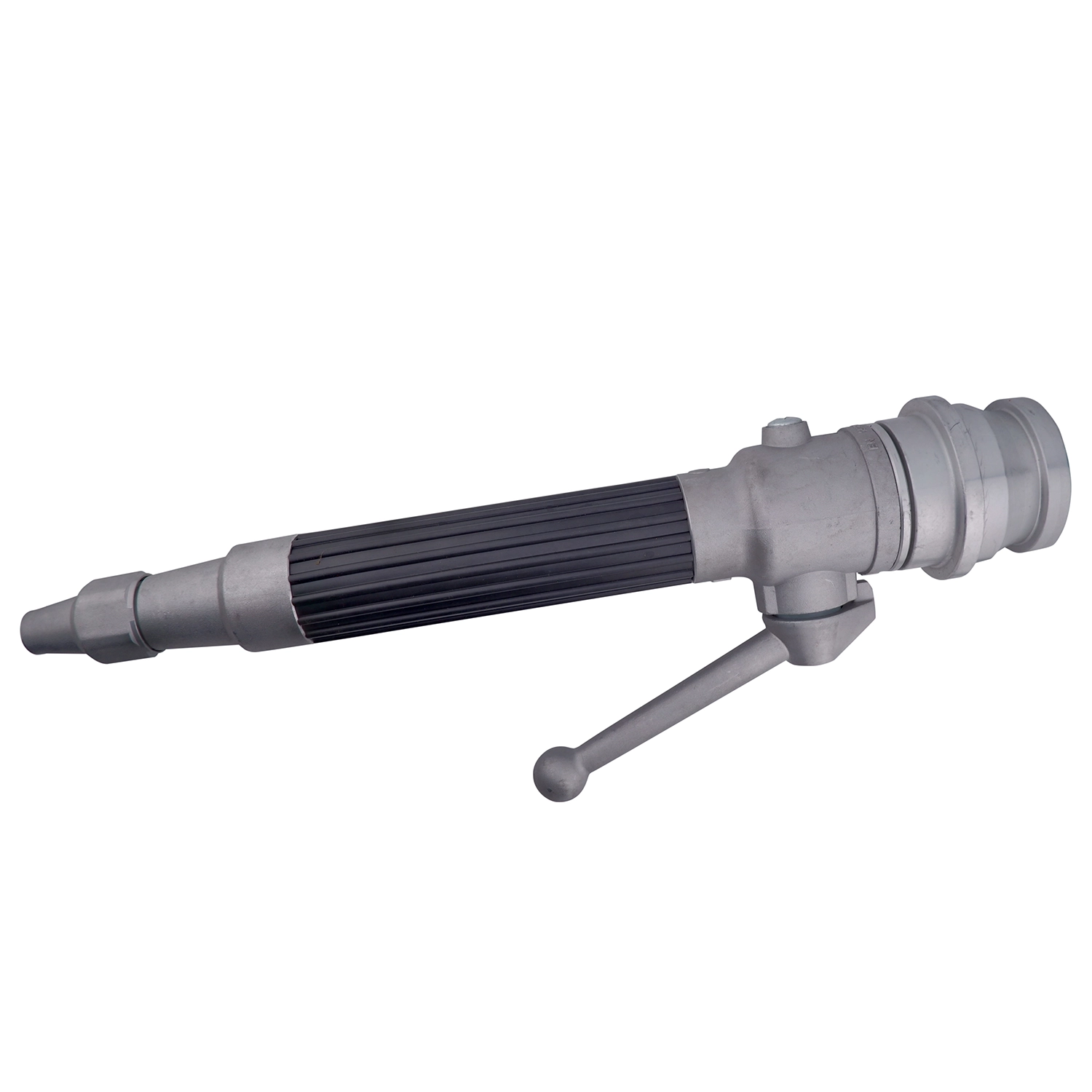

W254001S

Type CM No.1 Jet/off/Spray Nozzle – L/A

9 & 12mm nozzles,130 & 230 lpm at 6 bar. Spray angle 15 – 20 deg.

Inlet 2.1/2″ inst male – L/A. Max w.p. 16 bar

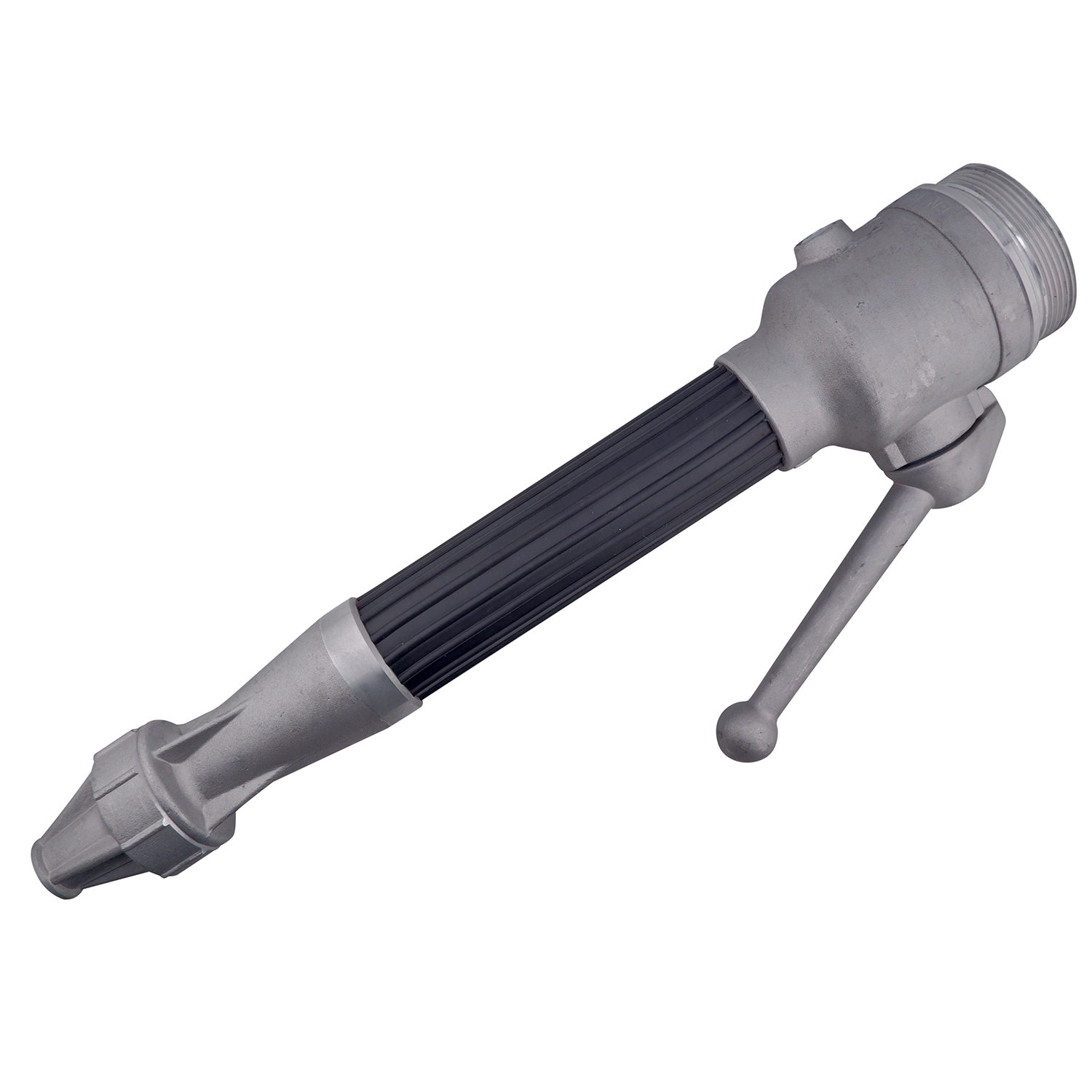

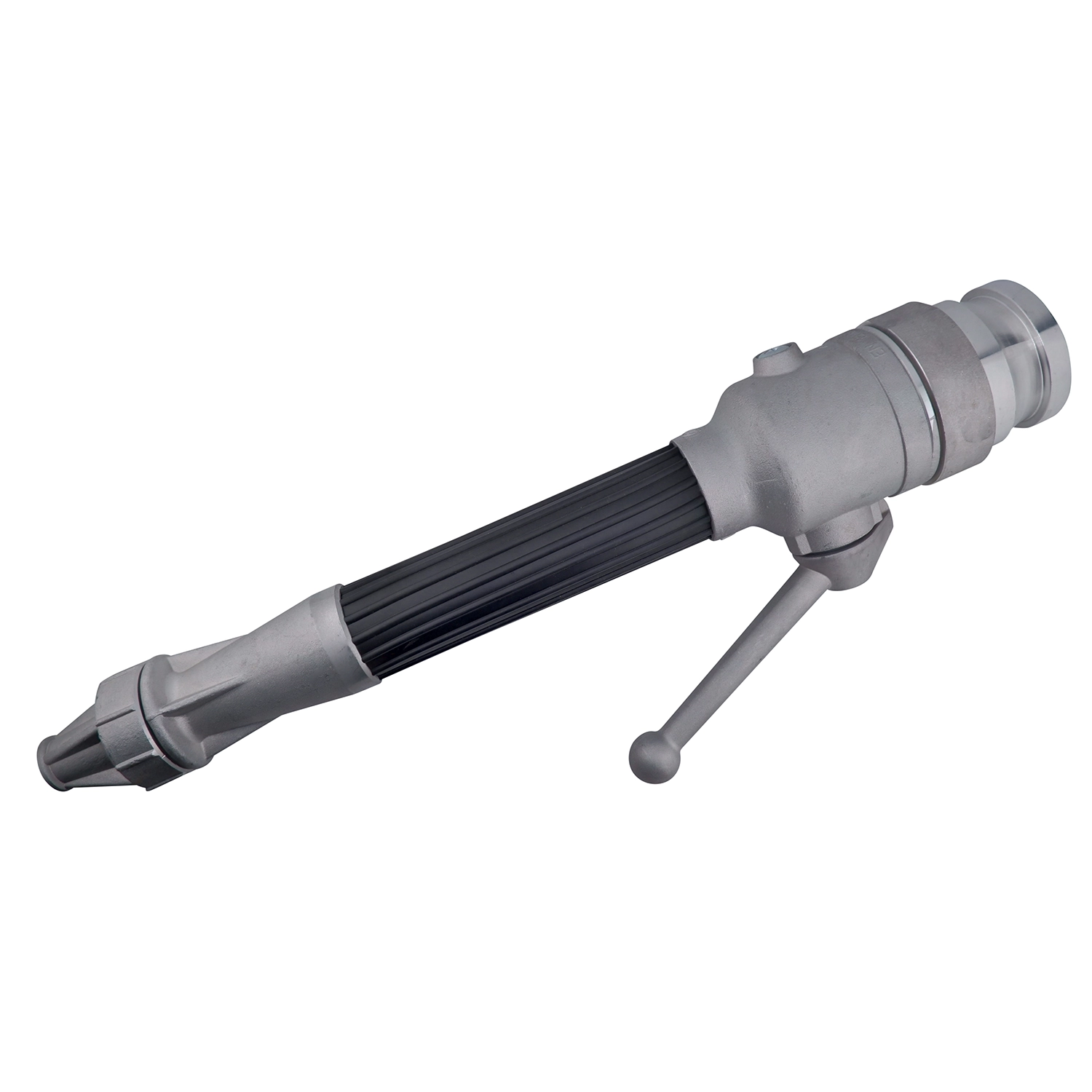

W254026S

Type BM No.2 Off/Jet/Spray Nozzle.

22 & 16mm nozzle/tip,400 lpm at 6 bar. Spray angle 15-20 deg.

Inlet 2.5″ inst male – L/A. Max w.p. 16 bar.

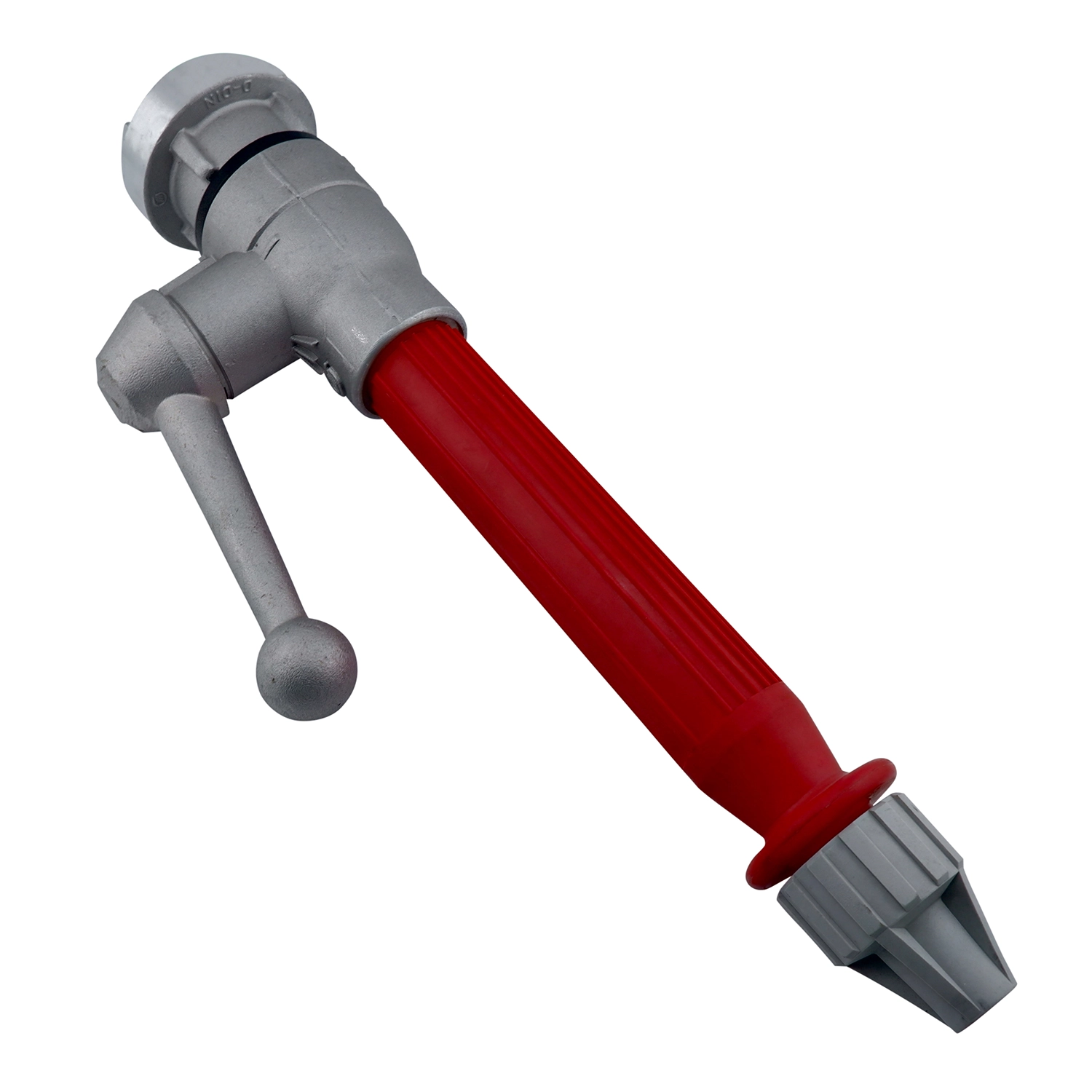

W254052S

DM 1″ Jet/off/Spray Nozzle.

4 & 6mm nozzles, 25 & 55 lpm at 6 bar. Spray angle 15 – 20 deg.

Inlet Storz 25 D (KA31) – L/A. Polyamide branch, nozzle and tip.

Max w.p. 16 bar
