Heliskid

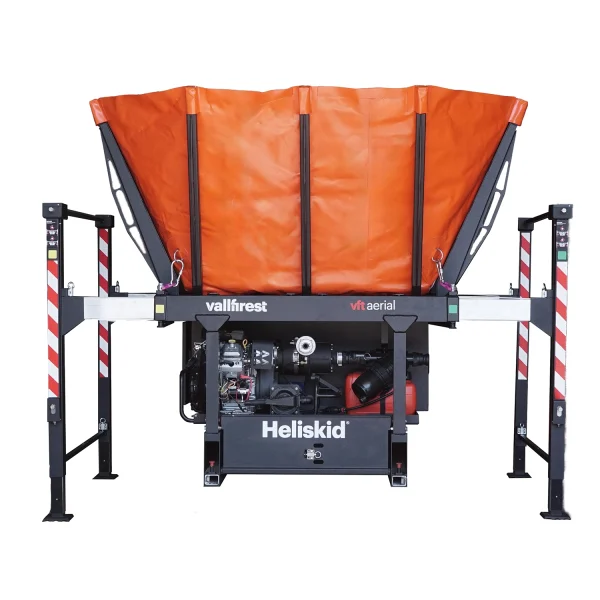

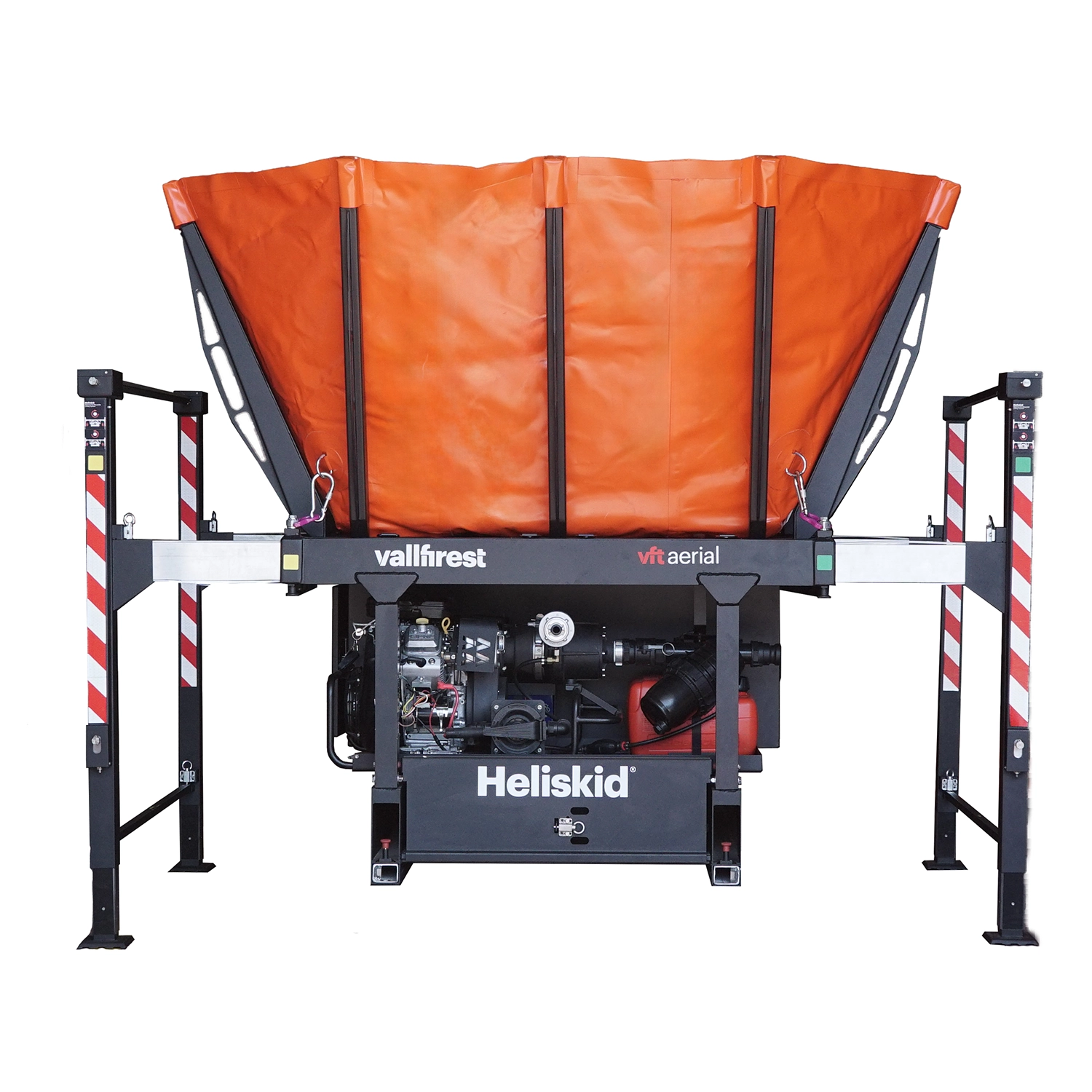

Heliskid is a compact and versatile skid unit for light vehicles designed for easier direct attack operations with a water line in remote areas. A device that can be moved on the ground or in the air, it has 6 times more water capacity than a traditional skid unit and a high-performance motor pump.

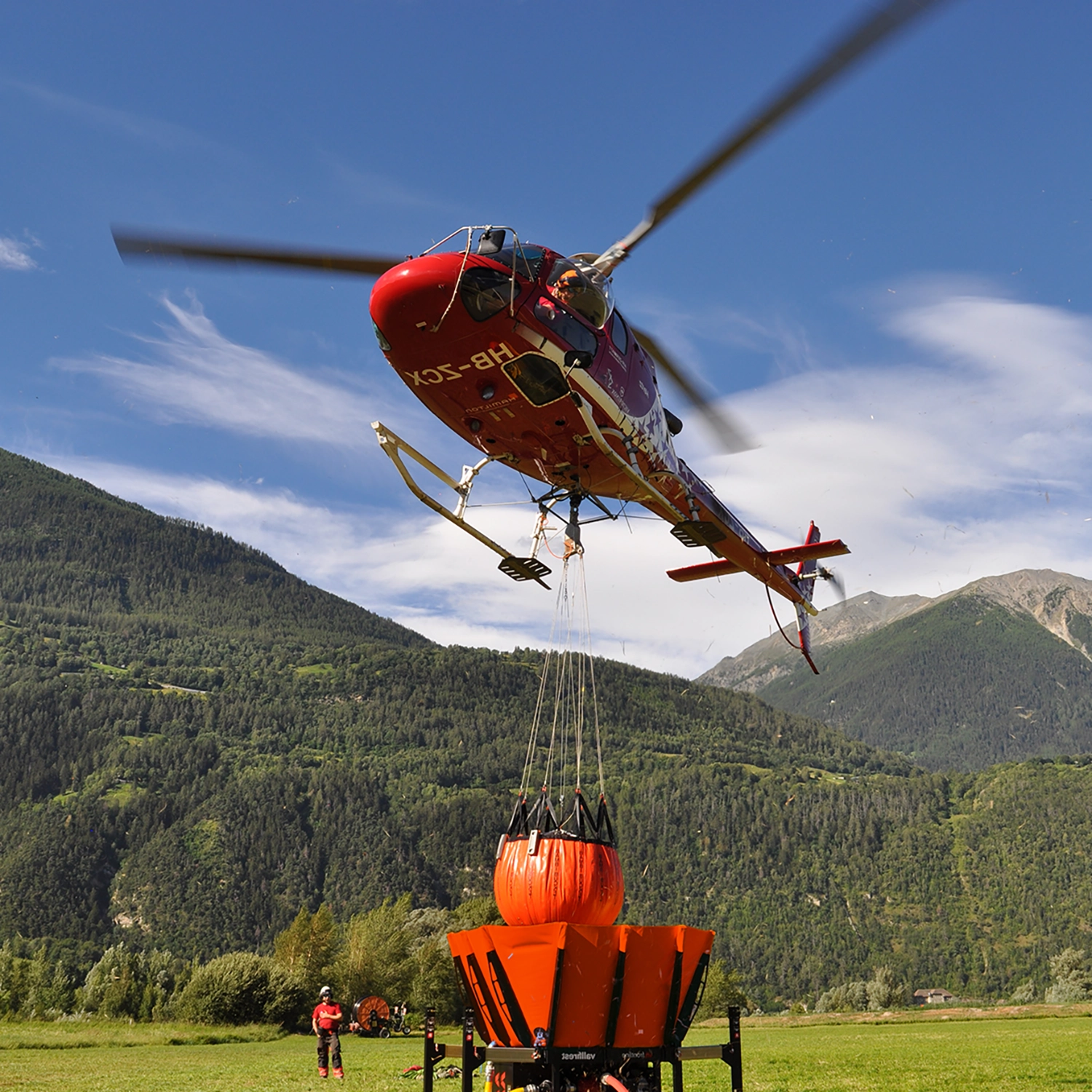

The Heliskid can be helitransported to remote areas, pick up trucks can’t go, so a tank can be located in a strategic point for extinguishing work. The purpose is to quickly deploy the structure/deposit wherever needed to be filled with water from a helicopter in inaccessible areas and pressure-feed the water from the tank through the fire pump and hoses.
1. Foldable canvas tank of 3,000 l.
2. 4 lifting points.
3. 4 stages motorpump with a 13HP, 18HP, 21HP or 23HP engine.
4. Reinforced aluminum main structure.
5. Fuel tank 12 l.
6. Telescopic structure.
Telescopic structure Quick fastening support system
Hose backpack It can carry 3-4 hose backpacks with a total of 240-320 m. of hose.
3,000 l canvas tank. Folding canvas and removable structure to be transported
Motor pump 4 stage motorpump with multiple engine configurations (13-23HP)
Fuel tank 12 l.
Lifting points 4 points for transport by helicopter.
Assembly personnel Recommended a minimum of 2 people.
Weight 415 kg without water l 3.400 kg with a full tank.
| Title | Type | Size | |
|---|---|---|---|
|
Heliskid | application/pdf | 1 MB |
