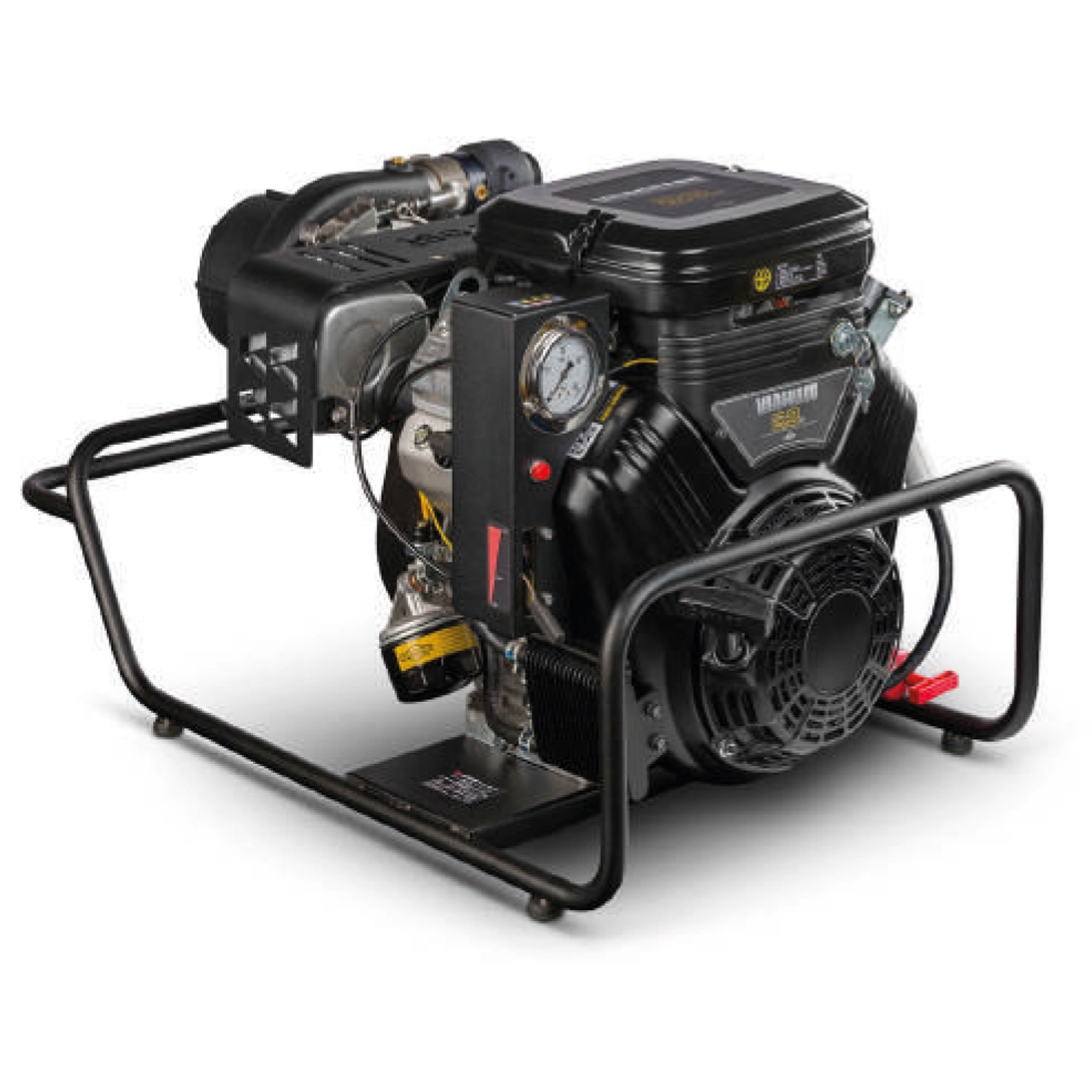

Black Hawk BH4-18 Pump

The BH4 -18 fire pump is within the vft Black Hawk line of portable fire pumps. It combines a powerful air-cooled Briggs and Stratton Vanguard V twin 18 HP engine with electronic cut-off, with the Speed Increaser vft and the VFT_4SP 4-stage centrifugal pump, offering excellent working capacity at high pressures and high flow rates. This combination can make long hose runs both in series and in parallel without losing performance.
It has a quick coupling system for the VFT_4SP pump that allows it to be replaced in the shortest possible time if a breakdown occurs. This pump is also used in the BP4, BH4-13 and BH4-23 fire pumps, which allows a better management of the spare parts stock.

Applications

• Direct attack.
• Long hoses laid.
• Self-protection maneuvers with sprinklers.
• Tandem pumping for long distances.
• Parallel pumping for higher volumes.
• Assembly in skid units and extinguishing vehicles.

Features

• Rope manual starter or electric starter (with extra battery).
• VFT_4SP pump easily interchangeable thanks to a quick release clamp.
• Compatible with VFT_3SP 3-stage and VFT_2SP two-stage pumps.
• Maintenance-free speed increaser. Made of cast aluminum and high quality components.
• Choice of transport base: tubular frame (for greater maneuverability), or base for assembly on vehicles.
• Hand priming pump and pressure gauge included.
• Non-return valve for impulsion included.
• Pump compatible with foam-forming agent.
