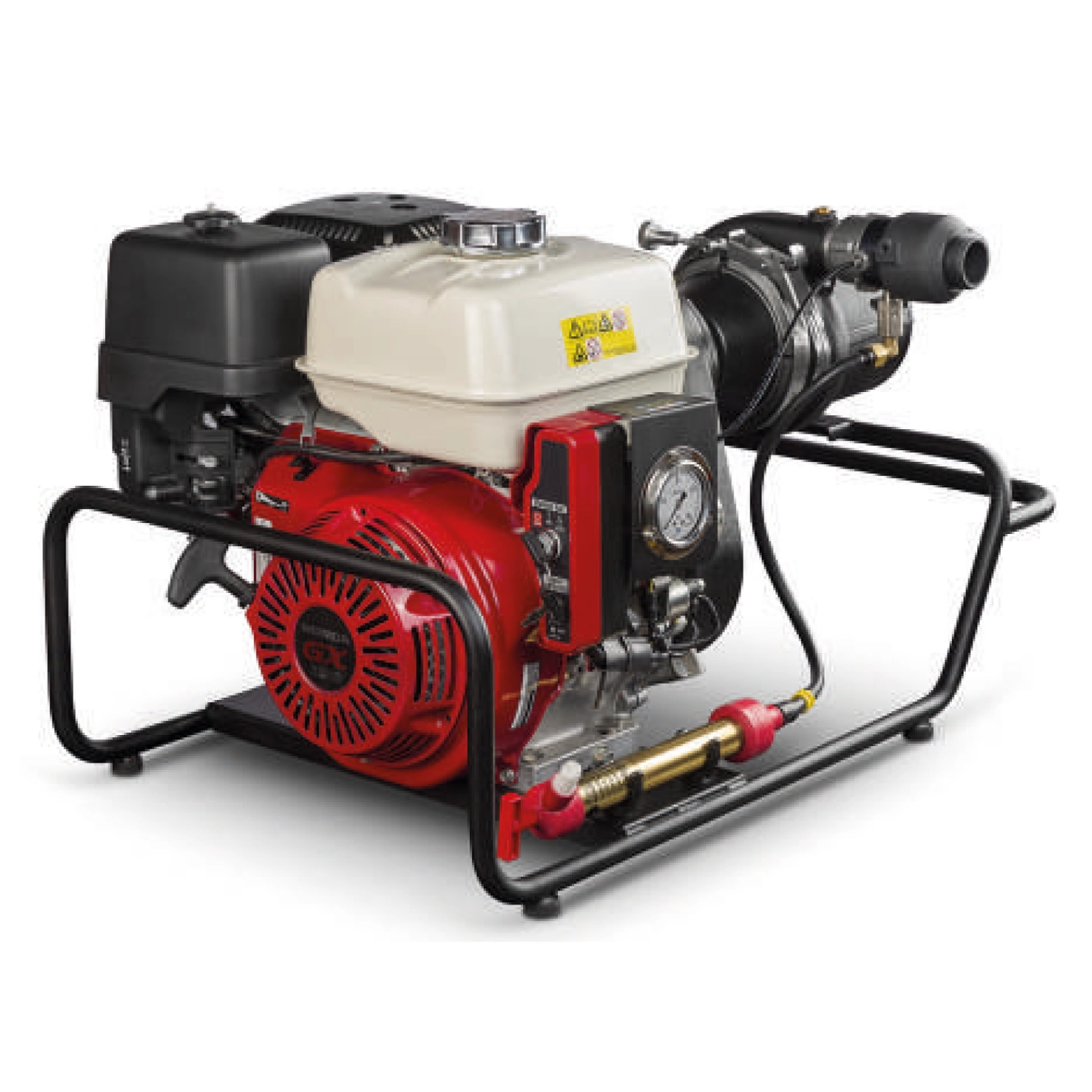

Black Hawk BH4-13 Pump
The BH4 -13 fire pump is within the vft Black Hawk line of portable fire pumps. It combines an efficient and reliable 13 HP * air-cooled Honda GX390 engine with electronic cut-off, with the Speed Increaser vft and the VFT_4SP 4-stage centrifugal pump, offering excellent high pressure and high flow capacity. This combination can make long hose runs both in series and in parallel without losing performance.
It has a quick coupling system for the VFT_4SP pump that allows it to be replaced in the shortest possible time if a breakdown occurs. This pump is also used in the BP4, BH4-18 and BH4-23 fire pumps, which allows a better management of the spare parts stock.
Applications
• Direct attack.
• Long hoses laid.
• Self-protection maneuvers with sprinklers.
• Tandem pumping for long distances.
• Parallel pumping for higher volumes.
• Assembly in skid units and extinguishing vehicles.
Features
• Rope manual starter or electric starter (with extra battery).
• VFT_4SP pump easily interchangeable thanks to a quick release clamp.
• Compatible with VFT_3SP 3-stage and VFT_2SP two-stage pumps.
• Maintenance-free speed increaser. Made of cast aluminum and high quality components.
• Choice of transport base: tubular frame (for greater maneuverability), or base for assembly on vehicles. • Integrated fuel tank.
• Hand priming pump and pressure gauge included.
• Non-return valve for impulsion included.
• Pump compatible with foam-forming agent.
Certified standards
2006/42/CE
UNE EN-14466:2006+A1 2009
UNE-EN 1028-2:2003+A1 2008
